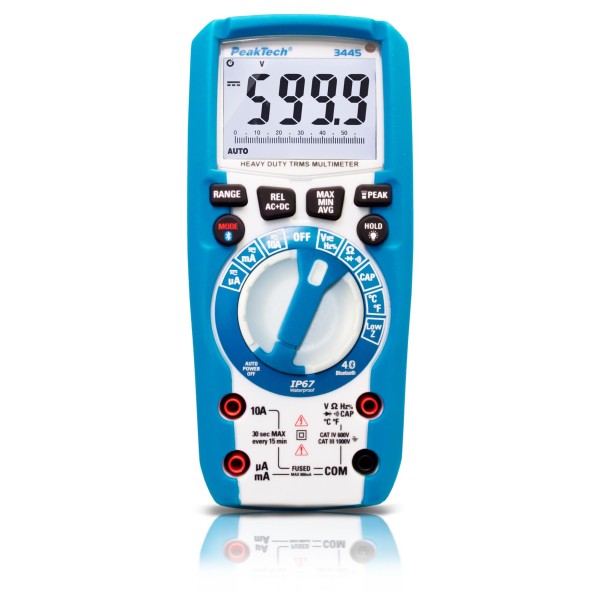

PeakTech 3445 - Digital Multimeter 3 5/6 digits (5999) 17mm, Bargraph, 1000V AC/DC, TRMS, Backlit (LCD, Buttons), BT, IP67
Digital Multimeter 3 5/6 digits (5999) 17mm, Bargraph, 1000V AC/DC, TrueRMS, Frequency Meter, Thermometer K, Backlit, Illuminated Function Buttons, Bluetooth, IP67
The PeakTech 3445 is a new developed digital multimeter for heavy duty use with a high variety of useful measurement functions.
As unique function, this device has illuminated function buttons and rotary switch, so you can use this IP67 waterproof device even under worst conditions and in total darkness.
In addition to the comprehensive measurement functions for current, voltage, capacity, resistance and many more, this device has a Temperature measutment function, MAX/MIN, Peak and Data-Hold, among many other things.
Digital Multimeter 3 5/6 digits (5999) 17mm, Bargraph, 1000V AC/DC, TrueRMS, Frequency Meter, Thermometer K, Backlit, Illuminated Function Buttons, Bluetooth, IP67
The PeakTech 3443 is a new developed digital multimeter for heavy duty use with a high variety of useful measurement functions.
As unique function, this device has illuminated function buttons and rotary switch, so you can use this IP67 waterproof device even under worst conditions and in total darkness.
In addition to the comprehensive measurement functions for current, voltage, capacity, resistance and many more, this device has a Temperature measutment function, MAX/MIN, Peak and Data-Hold, among many other things.
Through these many technical qualities, this device is suitable for the outdoor use of every electrician, technician and engineer in the service, construction or industrial sector.
- 3 5/6 digits 17mm measurement value display (max. 5999)
- Automatic illuminated functions keys and rotary switch
- 42-segment bar-graph
- Integrated powerful LED Flashlight
- Bleutooth 4.0 interface for data transfer to Android smartphones
- TrueRMS measurement
- ACV, ACV+DCV, DCV measurement and Low Impedance (Lo Z)
- LCD-Display with Relative-value measurement
- Continuity with buzzer and diode-test
- Data-Hold, Min, Max, Peak function and Duty Cycle (Hz / %)
- Heavy Duty Outdoor Case, IP67 dust and waterproof/li>
- Safety: EN 61010-1; CAT III 1000V / CAT IV 600V

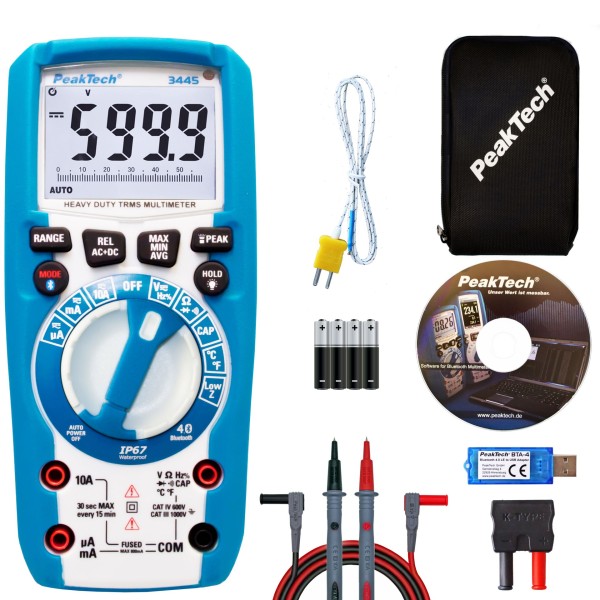

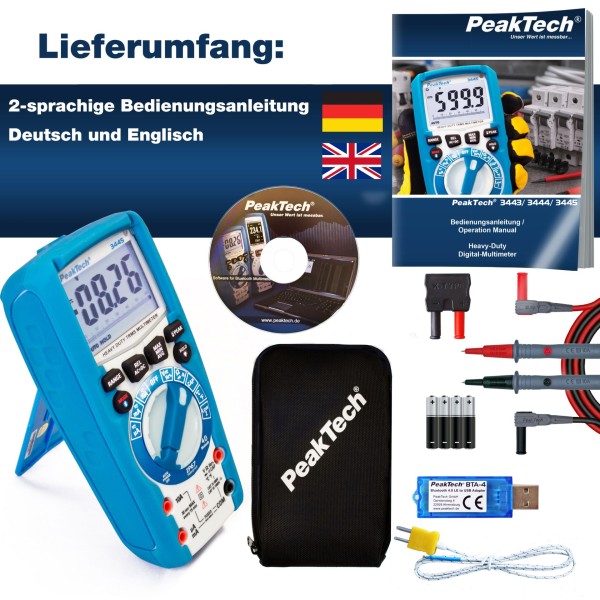

- Accessories: Carrying case, Test Leads, K-type Thermocouple, Batteries and manual
DC V | 600mV / 6 / 60 / 600 / 1000V; ± (0.8% + 8 digits) |
AC V; | 6 / 60 / 600 / 1000V; ± (1% + 5 digits) (40Hz - 1kHz) |
AC V + DC V; | 6 / 60 / 600 / 1000V; ± (1% + 20 digits) (40Hz - 400Hz) |
DC A | 600µA / 6 / 60 / 600mA / 10A; ± (1.2% + 3 digits) |
AC A | 600µA / 6 / 60 / 600mA / 10A; ± (1% + 3 digits) (40Hz - 400Hz) |
Ohm | 600Ω / 6 / 60 / 600kΩ / 6 / 60MΩ ± (1.5% + 5 digits) |
Capacity | 60 / 600nF / 6 / 60 / 600µF / 6mF; ± (3% + 5 digits) |
Frequency | 10Hz - 10kHz; ± (1% + 5 digits) |
Temperature | -20.0°C to +780°C; ± (1% + 5°C) |
Operating Voltage | 4 x 1.5V AAA batteries |
Dimensions (WxHxD) | 75x170x50mm3 |
Weight | 400g |
EAN-13 | 4250569404214 |
