PeakTech 1362 - Digital Oscilloscope 8 bits, Touchscreen 8”, 2 Channels 200MHz 2GS/s, Multimeter 3¾ digits,Waveform Gener. 25MHz

1362
$1,626.70

Digital Oscilloscope 8 bits, Touchscreen 8", 2 Channels 200 MHz 2 GS/s total, Integrated Multimeter 3 ¾ digits, Integrated Waveform Generator 25 MHz.

Oscilloscope with touch screen, with 2 channels and large 8" TFT color display.

Integrated multimeter 3 ¾ digits.

Integrated waveform generator 25 MHz.

LAN, USB Host, USB Device and WiFi interfaces for the transmission of measured data to a PC or for remote control.
VGA interface for external monitor.

Available
Security HTTPS protocol
Fast shipment worldwide
At your service 365 days a year

Digital Oscilloscope 8 bits, Touchscreen 8", 2 Channels 200 MHz 2 GS/s total, Integrated Multimeter 3 ¾ digits, Integrated Waveform Generator 25 MHz.

Oscilloscope with touch screen, with 2 channels and large 8" TFT color display.

Integrated multimeter 3 ¾ digits.

Integrated waveform generator 25 MHz.

LAN, USB Host, USB Device and WiFi interfaces for the transmission of measured data to a PC or for remote control.
VGA interface for external monitor.

  • 8" (20 cm) High-resolution TFT color display with 800 x 600 pixels
  • LAN & USB ports for real time data transmission
  • VGA port for external monitor
  • Saving of measured values and graphics to external USB memory device
  • Use the optional battery (Model Akku 6) for operation when mains power is not available
  • Handy and flat case design with carrying handle
  • Autoset function for easy operation
  • Record lenght of max. 40 Mega Points
  • Automatic measurement modes and FFT function
  • Safety: EN 61010-1; CAT II
  • Accessories included: USB cable, software CD for Windows, power cable, 2 probes, carrying case, manual
Bandwidth 200 MHz
Display 8" (20 cm) Touchscreen color-TFT
Resolution 800 x 600 Pixels
Channels 2 Channels
Sampling Rate 1 Channel: 2 GS/s; 2 Channels: 1 GS/s each
Record lenght (points) 1 Channel: 40,000,000; 2 Channels: 20,000,000 points each
Waveform Refresh Rate   75,000 wfms/s
Rise Time ≤ 1.75 ns
Vertical Sensitivity 1 mV - 10 V/div.
Vertical Resolution 8 bits
Horizontal Scale 1 ns - 1000 s / div.
Trigger Type Edge/Video/Pulse/Slope ...
Trigger Mode Auto, Normal, Single

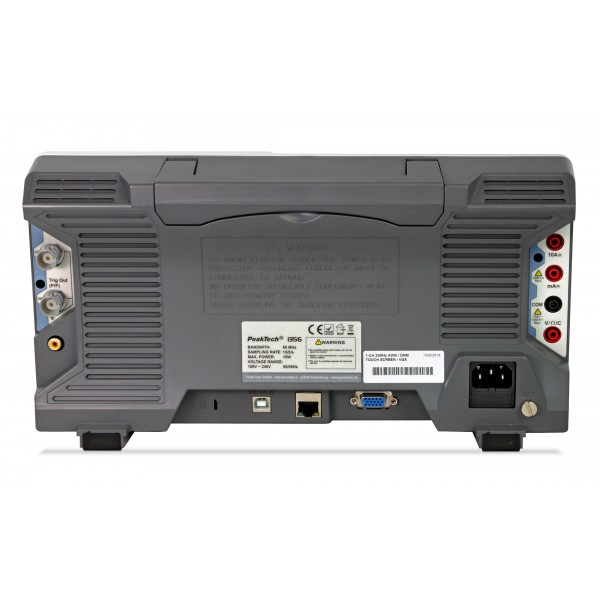

Interfaces LAN, USB Device, USB Host, VGA
Operating Voltage 100 ~ 240 V AC 50 ~ 60 Hz
Power Consumption < 15W
Battery (optional) AKKU 6
Dimensions (WxHxD)   340 x 175 x 90 mm3
Weight 2.6 kg
Digital Multimeter - 3 ¾ digits (3999)
Input impedance 10 MΩ
DC Voltage 400mV, 4V, 400V ±(1% +1dgt.), Max. 1000V
AC Voltage 4V, 40V, 400V ±(1% +3dgt.), Max. AC 750V (Frequency 40Hz-400Hz)
DC Current 40mA, 400mA ±(1.5% +1 dgt.); 10A ±(3% +3dgt.)
AC Current 40mA ±(1.5% +3 dgt.); 400mA ±(2% +1 dgt.); 10A ±(3% +3dgt.)
Resistance 400Ω ±(1% +3 dgt.); 4KΩ~40MΩ ±(1% +1 dgt.); 40MΩ ±(1.5% +3 dgt.)
Diode test 0V – 1.5V
Continuity Tester 50Ω (+/-30Ω) acoustic signal

Waveform Generator - 25 MHz
Output voltage range 10 mVpp - 6 Vpp
Vertical resolution 125 MS/s
Sampling rate 4V, 40V, 400V ±(1% +3dgt.), Max. AC 750V (Frequency 40Hz-400Hz)
Waveform length 8 K points
Standard waveforms Sine, Square, Ramp, Pulse
Arbitrary waveforms 46 Built-in

Download

Manual 1362 EN

PeakTech_1340-1375_EN.pdf

Download (4.42M)

Manuel 1362 FR

PeakTech_1340-1375_07-2021_FR.pdf

Download (4.47M)
