PeakTech 2030 - Digital Multimeter 6000 Counts, Bar Graph, 1000V, True RMS

2030
$77.97

Digital Multimeter 6000 Counts, Bar Graph, 1000V, True RMS

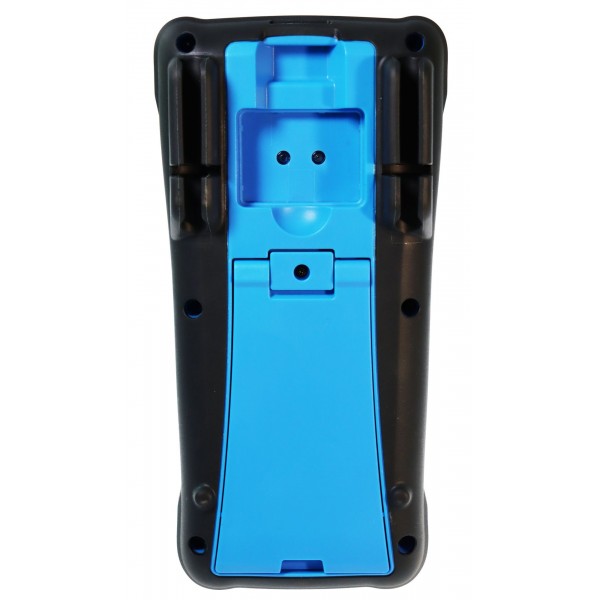

The PeakTech 2030 was developed for professional use, it has a double-insulated injection-molded housing with an anthracite-colored rubber coating, a service compartment on the back, through which not only the battery can be replaced, but also the fuses can be exchanged.
The device has an inverted LCD display with 6,000 Counts and Bar Graph. It is Autorange and supports measurements for DCV, ACV, DCA, ACA, Ohm, Cap, Hz, °C, °F, diode and continuity test.
Due to the high overvoltage category CAT III 1000V, you can use this device safely on electrical installations and systems.

Available
Security HTTPS protocol
Fast shipment worldwide
At your service 365 days a year

Digital Multimeter 6000 Counts, Bar Graph, 1000V, True RMS

The PeakTech 2030 was developed for professional use, it has a double-insulated injection-molded housing with an anthracite-colored rubber coating, a service compartment on the back, through which not only the battery can be replaced, but also the fuses can be exchanged.
The device has an inverted LCD display with 6,000 Counts and Bar Graph. It is Autorange and supports measurements for DCV, ACV, DCA, ACA, Ohm, Cap, Hz, °C, °F, diode and continuity test.
Due to the high overvoltage category CAT III 1000V, you can use this device safely on electrical installations and systems.

  • True RMS measurement of ACV & ACA values
  • 3 5/6 digit inverted LCD display with backlight
  • USB Interface for data recording
  • Measurements up to 1000V and 10A (20A max.) AC / DC
  • Automatic and manual range selection
  • Duty cycle, min/max and relative value function
  • Temperature measurements for type K probes
  • Auto Power Off and battery indication
  • Safety: EN 61010-1; CAT III 1000 V / CAT IV 600 V
  • Accessories: carrying case, test leads, temperature probe, battery, user manual
DC V 600 mV / 6 / 60 / 600 / 1000 V; 100 µV ± (0.5 % + 3 digits)
AC V 600 mV / 6 / 60 / 600 / 1000 V; 100 µV ± (0.8 % + 10 digits)
DC A 600 µA / 6 / 60 / 600 mA / 6 / 10 A; 100 nA ± (0.8 % + 10 digits)
AC A 600 µA / 6 / 60 / 600 mA / 6 / 10 A; 100 nA; ± (1 % + 5 digits)
Ohm 600 Ω / 6 / 60 / 600 kΩ / 6 / 60 MΩ; 10 mΩ; ± (0.8 % + 3 digits)
Capacity 60 / 600 nF / 6 / 60 / 600 µF / 6 mF; 10 pF; ± (3.5 % + 20 digits)
Frequency 10 / 100 Hz / 1 / 10 / 100 kHz / 1 / 20 MHz; 1 mHz; ± (0.5 % + 4 digits)
Temperature -20°C to +1000 °C; 0.1°C ± (1 % + 50 digits)
Operating voltage 9 V Battery
Dimensions (WxHxD)   101 x 201 x 68 mm3
Weight 496 g (Battery included)

Download

Manual 2030 DE-EN

PeakTech_2030_11-2021_DE-EN.pdf

Download (1M)

Manuel 2030 FR

PeakTech_2030_05-2021_FR.pdf

Download (834.14k)
