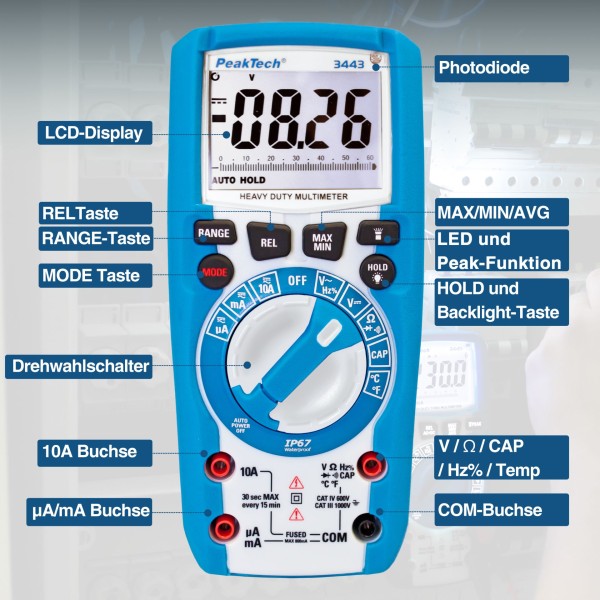

PeakTech 3443 - Digital Multimeter 3 5/6 digits (5999) 18mm, Bargraph, 1000 V DC/AC, Backlit, Illuminated Buttons, IP67

3443
$83.45

Digital Multimeter 3 5/6 digits (5999) 18mm, Bargraph, 1000 V DC/AC, Frequency Meter, Thermometer K, Backlit, Illuminated Function Buttons, IP67

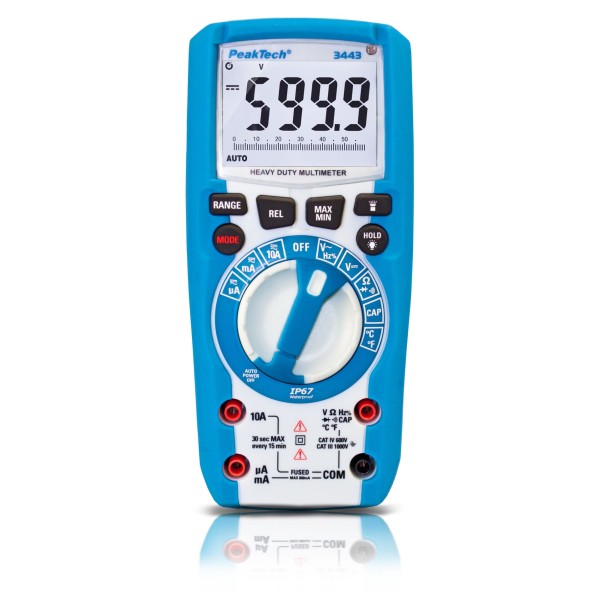

The PeakTech 3443 is a new developed digital multimeter for heavy duty use with a high variety of useful measurement functions.
As unique function, this device has illuminated function buttons and rotary switch, so you can use this IP67 waterproof device even under worst conditions and in total darkness.
In addition to the comprehensive measurement functions for current, voltage, capacity, resistance and many more, this device has a Temperature measutment function, MAX/MIN, Peak and Data-Hold, among many other things.

Available
Security HTTPS protocol
Fast shipment worldwide
At your service 365 days a year

Digital Multimeter 3 5/6 digits (5999) 18mm, Bargraph, 1000 V DC/AC, Frequency Meter, Thermometer K, Backlit, Illuminated Function Buttons, IP67

The PeakTech 3443 is a new developed digital multimeter for heavy duty use with a high variety of useful measurement functions.
As unique function, this device has illuminated function buttons and rotary switch, so you can use this IP67 waterproof device even under worst conditions and in total darkness.
In addition to the comprehensive measurement functions for current, voltage, capacity, resistance and many more, this device has a Temperature measutment function, MAX/MIN, Peak and Data-Hold, among many other things.
Through these many technical qualities, this device is suitable for the outdoor use of every electrician, technician and engineer in the service, construction or industrial sector.

  • 3 5/6 digits measurement value display (max. 5999)
  • Automatic illuminated functions keys and rotary switch
  • 42-segment bar-graph

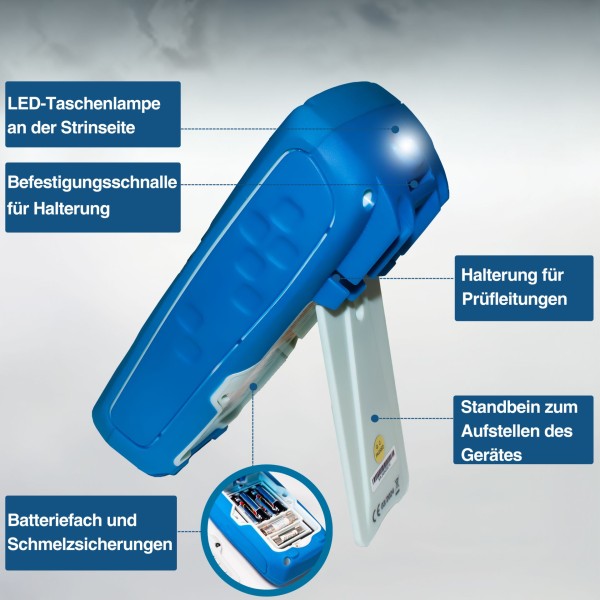

  • Integrated powerful LED Flashlight
  • LCD-Display with Relative-value measurement
  • Continuity with buzzer and diode-test
  • Data-Hold, Min, Max, Peak function and Duty Cycle (Hz / %)
  • Heavy Duty Outdoor Case, IP67 dust and waterproof/li>
  • Safety: EN 61010-1; CAT III 1000 V / CAT IV 600 V

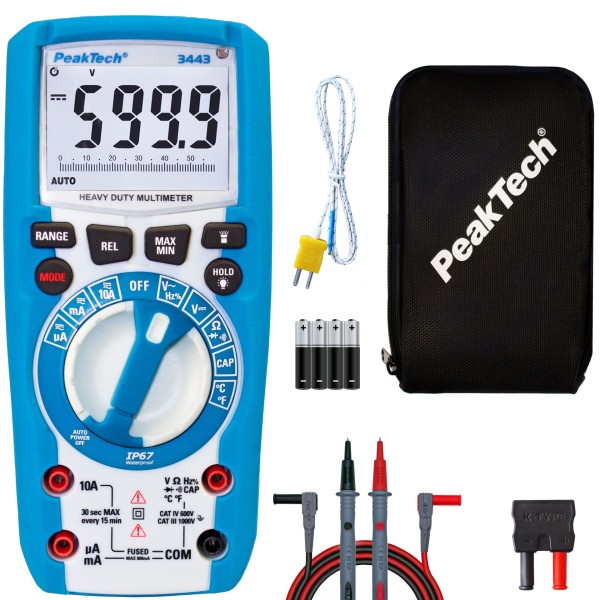

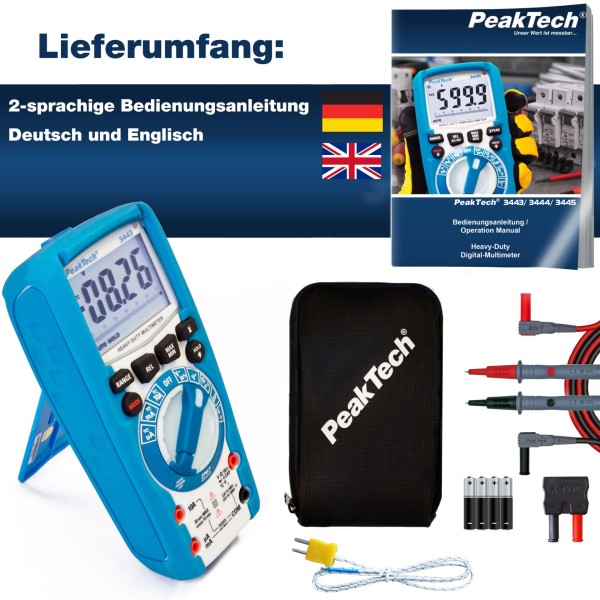

  • Accessories: Carrying case, Test Leads, K-type Thermocouple, Batteries and manual
DC V 600 mV / 6 / 60 / 600 / 1000 V; ±(1% + 3 digits)
AC V 6 / 60 / 600 / 1000 V; ±(1% + 5 digits) (50 Hz - 400 Hz)
DC A 600 / 6000 µA / 60 / 600 mA / 10 A; ±(1.2% + 3 digits)
AC A 600 / 6000 µA / 60 / 600 mA / 10 A; ±(1.5% + 4 digits) (50 Hz - 400 Hz)
Ohm 600 Ω / 6 / 60 / 600 kΩ / 6 / 60 MΩ ±(1.5% + 5 digits)
Capacity 40 / 400 nF / 4 / 40 / 400 / 4000 µF; ±(3% + 5 digits)
Frequency 10 Hz - 10 kHz; ±(1% + 5 digits)
Temperature -20.0 °C to +780 °C; ±(3% + 5 °C)
Operating Voltage 4 x 1.5 V AAA batteries
Dimensions (WxHxD)   75 x 170 x 50 mm3
Weight 400 g
EAN-13 4250569404214
