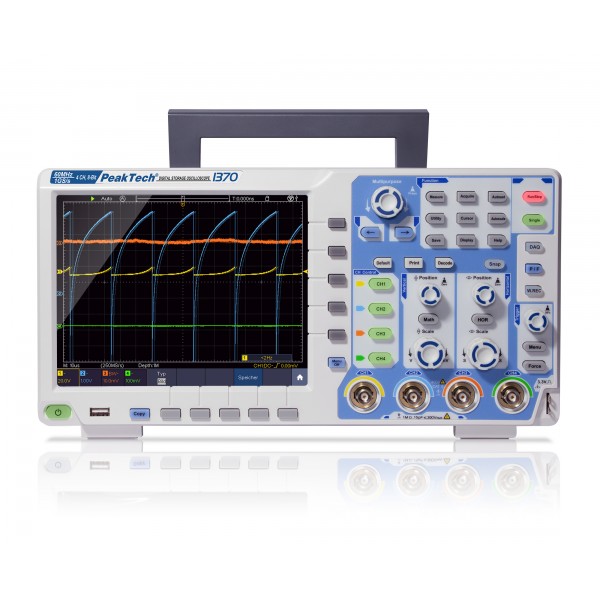

PeakTech 1370 - Digital Oscilloscope 8 bits, Touchscreen 8", 4 Channels 60 MHz 1 GS/s, Multimeter 3 ¾ digit
1370
$1,084.10
Digital Oscilloscope 8 bits, Touchscreen 8", 4 Channels 60 MHz 1 GS/s, Multimeter 3 ¾ digits
4-channel digital storage oscilloscope of the latest generation with high-resolution TFT color display with integrated multimeter, VGA-Output & CAN-Bus decoder. This newly developed series offers a wide range of applications with ease of use in electrical engineering, industry, research and development.
Security HTTPS protocol
Fast shipment worldwide
At your service 365 days a year
Digital Oscilloscope 8 bits, Touchscreen 8", 4 Channels 60 MHz 1 GS/s, Multimeter 3 ¾ digit
4-channel digital storage oscilloscope of the latest generation with high-resolution TFT color display with integrated multimeter, VGA-Output & CAN-Bus decoder. This newly developed series offers a wide range of applications with ease of use in electrical engineering, industry, research and development.
- High-resolution TFT color display with 800 x 600 pixels
- 8" (20 cm) TFT color display
- LAN, WiFi & USB port for real time data transmission
- Saving of measured values and graphics to external USB memory device
- Use the optional battery (Model Akku 6) for off-grid operation
- Use the W-LAN interface for remote control in dangerous areas
- Integrated digital multimeter with 4000 counts
- Handy and flat case design with carrying handle
- Autoset function for easy operation
- Record lenght of max. 40 million points
- Automatic measurement modes and FFT function
- Safety: EN 61010-1; CAT II

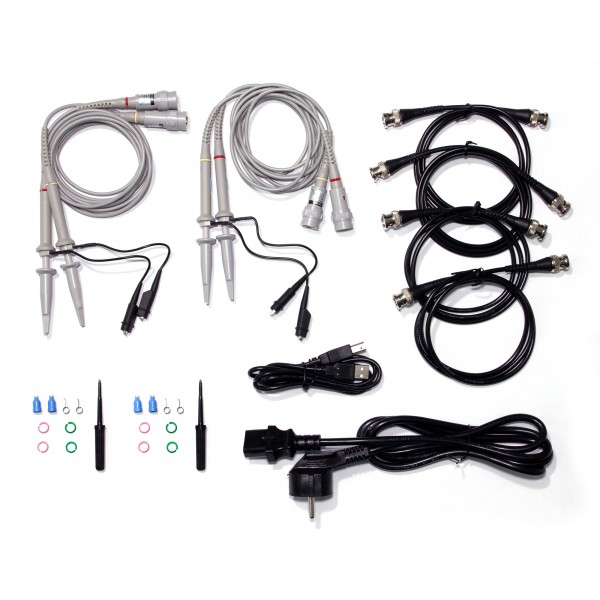

- Included accessories: 4 probes, 4 BNC cables, USB cable, software CD for Windows, power cable, carrying case, manual
| Bandwidth | 60 MHz |
| Display | 8" (20 cm) Touchscreen color-TFT |
| Resolution | 800 x 600 Pixels |
| Channels | 4 CH |
| Vertical resolution | 8 bits |
| Acquisition | |
|---|---|
| Sampling rate | 1 Channel: 1 GSa/s; 2 Channels: 500 MSa/s each; 4 Channels: 250 MSa/s each |
| Record lenght (points) | 1 Channel: 40,000,000; 2 Channels: 20,000,000 each; 4 Channels: 10,000,000 each |
| Waveform refresh rate | 45000 wfms/s |
| Rise Time | ≤ 5.8 ns |
| Vertical sensitivity | 1 mV - 10 V/div. |
| Horizontal scale | 2ns - 1000s/div. |
| Trigger type | Edge / Video / Pulse / Slope / CAN-BUS |
| Trigger mode | Auto, Normal, Single |
| Digital Multimeter - 3 ¾ digits (3999) | |
| Input impedance | 10 MΩ |
| DC Voltage | 400mV, 4V, 400V ±(1% +1dgt.), Max. 1000V |
| AC Voltage | 4V, 40V, 400V ±(1% +3dgt.), Max. AC 750V (Frequency 40Hz-400Hz) |
| DC Current | 40mA, 400mA ±(1.5% +1 dgt.); 10A ±(3% +3dgt.) |
| AC Current | 40mA ±(1.5% +3 dgt.); 400mA ±(2% +1 dgt.); 10A ±(3% +3dgt.) |
| Resistance | 400Ω ±(1% +3 dgt.); 4KΩ~40MΩ ±(1% +1 dgt.); 40MΩ ±(1.5% +3 dgt.) |
| Diode test | 0V – 1.5V |
| Continuity Tester | 50Ω (+/-30Ω) acoustic signal |
| General | |
| Interfaces | WiFi, LAN, USB Device, USB Host |
| Battery (optional) | Model "AKKU 6" |
| Operating voltage | 100 ~ 240 V AC 50 ~ 60 Hz |
| Dimensions (WxHxD) | 340 x 175 x 90 mm3 |
| Weight | 2.6 kg |
