Multímetro Digital 3 5/6 dígitos

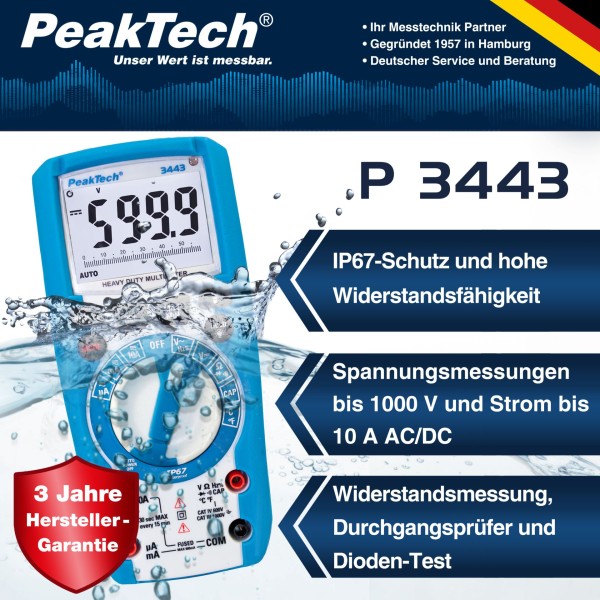

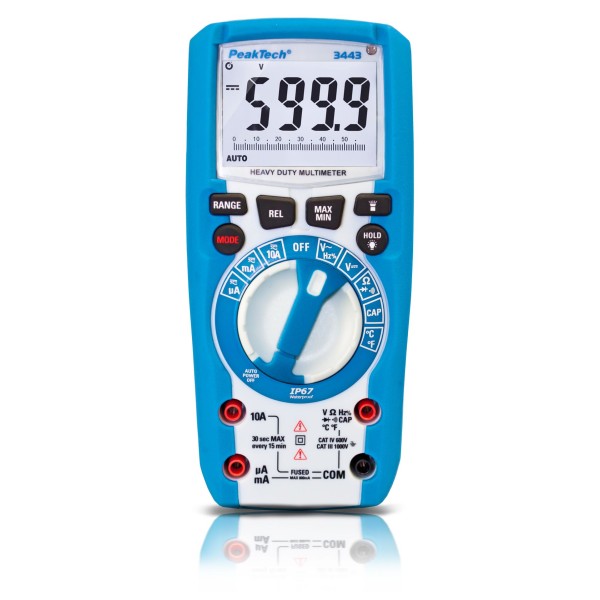

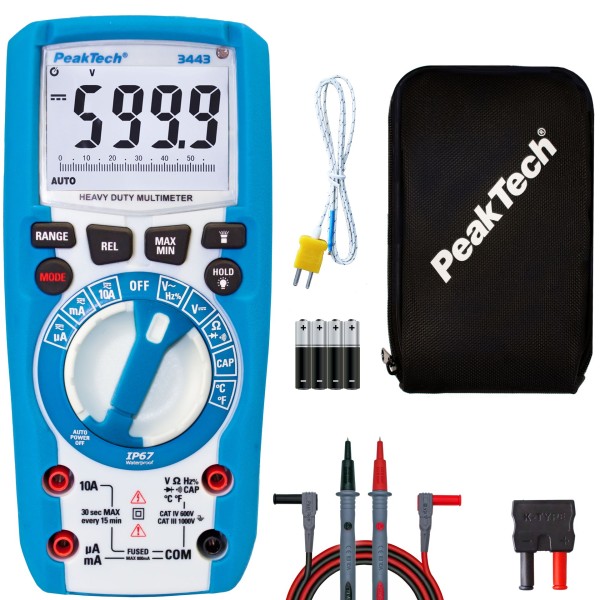

PeakTech 3443 - Multímetro Digital 3 5/6 dígitos (5999) 18mm, Barra Gráfica, 1000V CC/CA, IP67, Pantalla y Botones Brillantes

3443
84,08 $

Multímetro Digital 3 5/6 dígitos (5999) 18mm, Barra Gráfica, 1000V CC/CA, IP67, Retroiluminación

El PeakTech 3443 es un nuevo multímetro digital desarrollado para uso intensivo con una gran variedad de útiles funciones de medición.
Como función única, este dispositivo tiene botones de función iluminados e interruptor giratorio, por lo que puede usar este IP67 resistente al agua dispositivo incluso en las peores condiciones y en total oscuridad.
Además de las funciones de medición integrales de corriente, voltaje, capacidad, resistencia y muchas más, este dispositivo tiene una función de medición de temperatura, MAX / MIN, pico y retención de datos , entre muchas otras cosas.

Disponible
Protocolo de seguridad HTTPS
Envío rápido en todo el mundo
A su servicio los 365 días del año

Digital Multimeter 3 5/6 digits (5999) 18mm, Bargraph, 1000 V DC/AC, Frequency Meter, Thermometer K, Backlit, Illuminated Function Buttons, IP67

The PeakTech 3443 is a new developed digital multimeter for heavy duty use with a high variety of useful measurement functions.
As unique function, this device has illuminated function buttons and rotary switch, so you can use this IP67 waterproof device even under worst conditions and in total darkness.

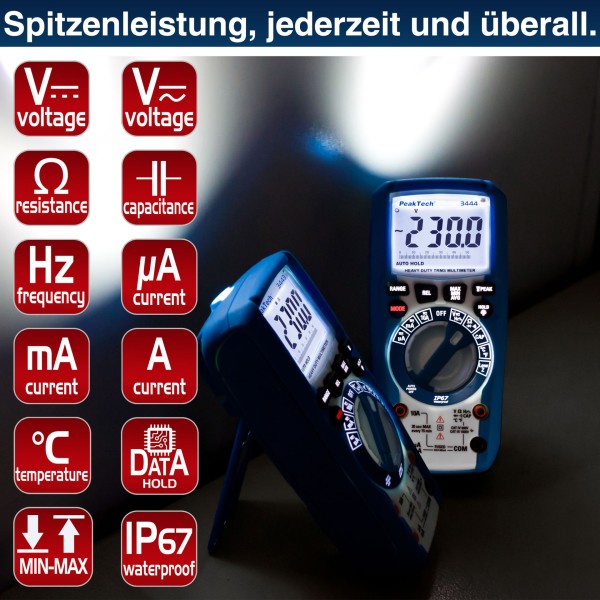

In addition to the comprehensive measurement functions for current, voltage, capacity, resistance and many more, this device has a Temperature measutment function, MAX/MIN, Peak and Data-Hold, among many other things.

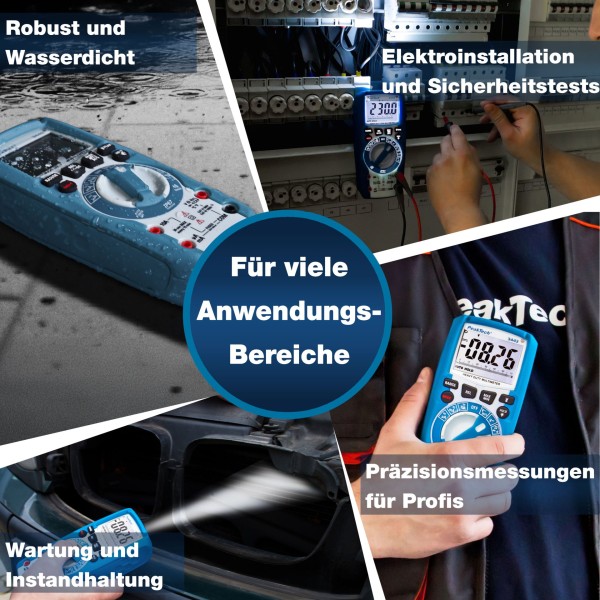

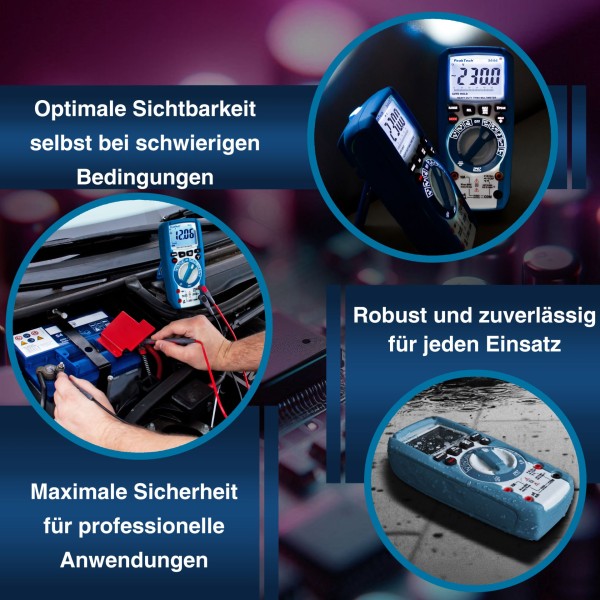

Through these many technical qualities, this device is suitable for the outdoor use of every electrician, technician and engineer in the service, construction or industrial sector.

  • 3 5/6 digits measurement value display (max. 5999)

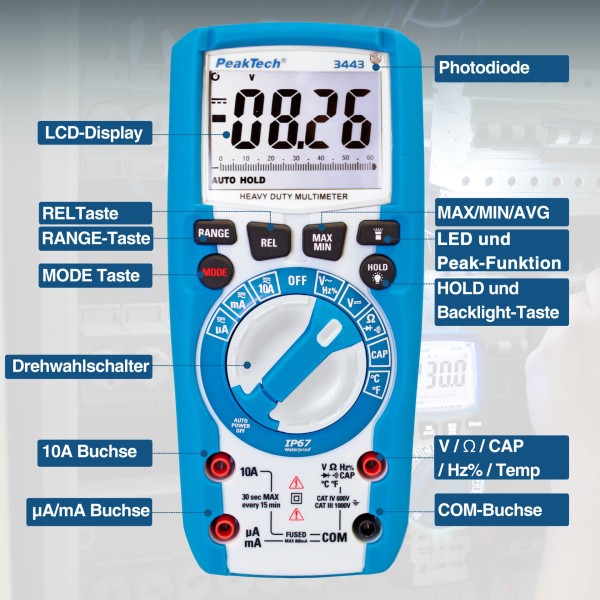

  • Automatic illuminated functions keys and rotary switch
  • 42-segment bar-graph

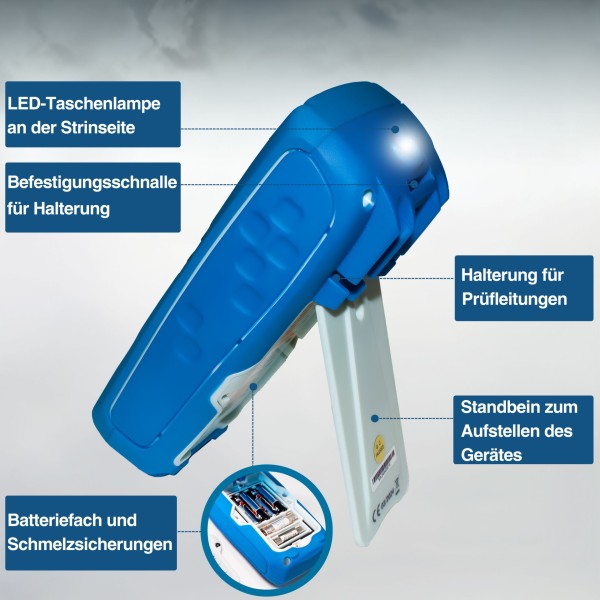

  • Integrated powerful LED Flashlight
  • LCD-Display with Relative-value measurement
  • Continuity with buzzer and diode-test
  • Data-Hold, Min, Max, Peak function and Duty Cycle (Hz / %)
  • Heavy Duty Outdoor Case, IP67 dust and waterproof/li>
  • Safety: EN 61010-1; CAT III 1000 V / CAT IV 600 V

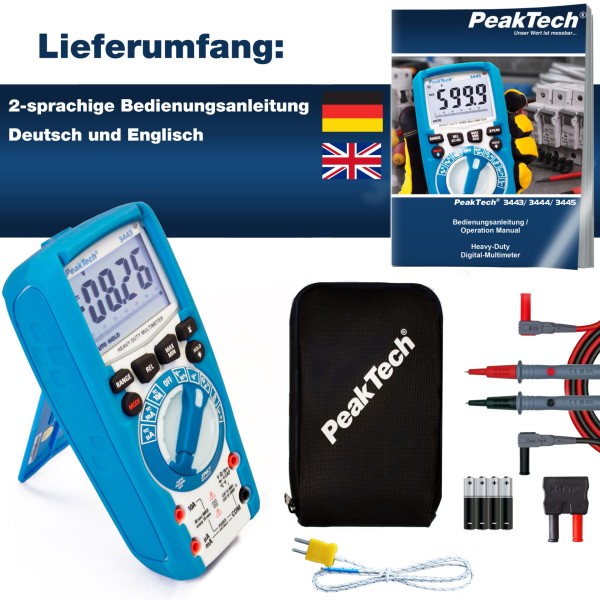

  • Accessories: Carrying case, Test Leads, K-type Thermocouple, Batteries and manual
DC V 600 mV / 6 / 60 / 600 / 1000 V; ±(1% + 3 digits)
AC V 6 / 60 / 600 / 1000 V; ±(1% + 5 digits) (50 Hz - 400 Hz)
DC A 600 / 6000 µA / 60 / 600 mA / 10 A; ±(1.2% + 3 digits)
AC A 600 / 6000 µA / 60 / 600 mA / 10 A; ±(1.5% + 4 digits) (50 Hz - 400 Hz)
Ohm 600 Ω / 6 / 60 / 600 kΩ / 6 / 60 MΩ ±(1.5% + 5 digits)
Capacity 40 / 400 nF / 4 / 40 / 400 / 4000 µF; ±(3% + 5 digits)
Frequency 10 Hz - 10 kHz; ±(1% + 5 digits)
Temperature -20.0 °C to +780 °C; ±(3% + 5 °C)
Operating Voltage 4 x 1.5 V AAA batteries
Dimensions (WxHxD)   75 x 170 x 50 mm3
Weight 400 g
EAN-13 4250569404214

Descargar

Manual 3443 DE-EN

PeakTech 3443-3445_07-2021_DE-EN.pdf

Descargar (1.63M)

Manuel 3443 FR

PeakTech 3443-3445_07-2021_FR.pdf

Descargar (1.46M)

Manuale 3443 IT

PeakTech_3443-3445_02-2023_IT.pdf

Descargar (1.45M)
