Meter of pH, Electrical Conductivity (EC) and Temperature (3-in-1)

5306
$46.55

Meter of pH, Electrical Conductivity (EC) and Temperature (3-in-1)

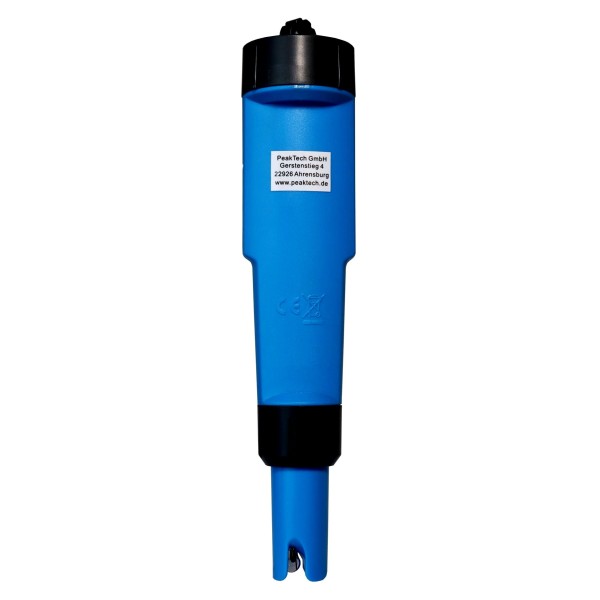

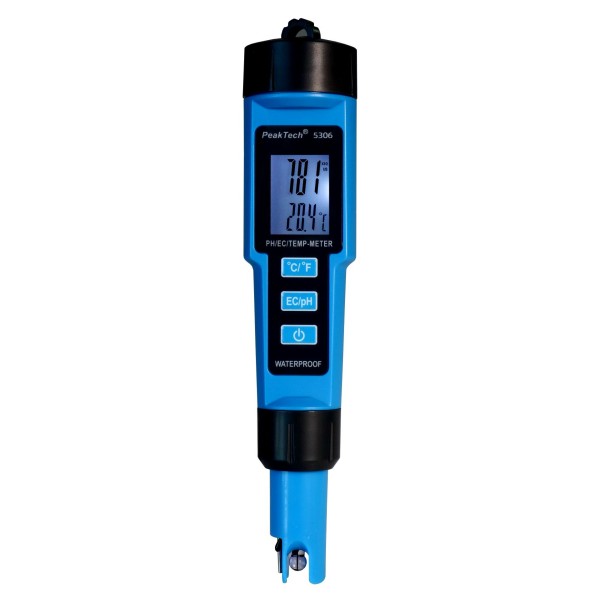

The PeakTech 5306 is a 3-in-1 pH meter that is operated with one hand and measures, at the same time, the pH or the Electric Conductivity (EC) in µS/cm, and the temperature in °C or °F, of liquids.
Both measured quantities are displayed on the LCD display with permanent backlight.

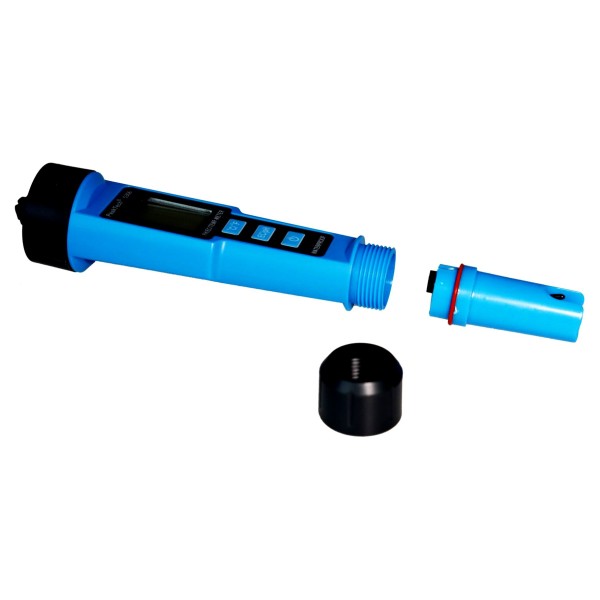

Attached to the rugged and waterproof housing is the easily replaceable sensor head, which includes the sensor for PH or EC measurement and temperature measurement.

Available
Security HTTPS protocol
Fast shipment worldwide
At your service 365 days a year

Meter of pH, Electrical Conductivity (EC) and Temperature (3-in-1)

The PeakTech 5306 is a 3-in-1 pH meter that is operated with one hand and measures, at the same time, the pH or the Electric Conductivity (EC) in µS/cm, and the temperature in °C or °F, of liquids.
Both measured quantities are displayed on the LCD display with permanent backlight.
Attached to the rugged and waterproof housing is the easily replaceable sensor head, which includes the sensor for PH or EC measurement and temperature measurement.

  • Convenient measuring device for pH, EC and Temperature
  • LCD display (max. 1999) with backlight
  • Simultaneous measured values via dual display
  • Handy housing design with exchangeable probe
  • Waterproof, stable housing
  • Calibration via trimmer potentiometer
  • Auto power off
  • Accessories: Batteries, Calibration Screwdriver, Manual

PeakTech 5306 - Meter of pH, Electrical Conductivity (EC) and Temperature (3-in-1)

Display 3 1⁄2-digit, LCD-display max 1999 counts
Functions pH: 0.00 to 14.00 pH
Electrical Conductivity (EC): 0 to 19999 μS/cm
Temperature: 0.0 °C to 50.0 °C
Resolution pH: 0.01
Electrical Conductivity (EC): 10 μS/cm
Temperature: 0.1 °C
Accuracy pH: ±0.1
Electrical Conductivity (EC): ±2% of full scale
Temperature: ±1 °C
Sampling Rate 1 / s – 2 / s
Calibration With two potentiometers
  Operating Temperature     From 0°C to +50 °C (From 32°F to 122 °F); <80% RH
Power Supply 4 x 1.5V Batteries (AG-13)
Dimensions (HxLxW)   188 x 35 x 35 mm3
Weight 80 g

Download

Manual 5306 DE-EN

PeakTech_5306_01-2022_DE-EN.pdf

Download (1.07M)

Manuel 5306 FR

PeakTech_5306_01-2022_FR.pdf

Download (824.67k)
