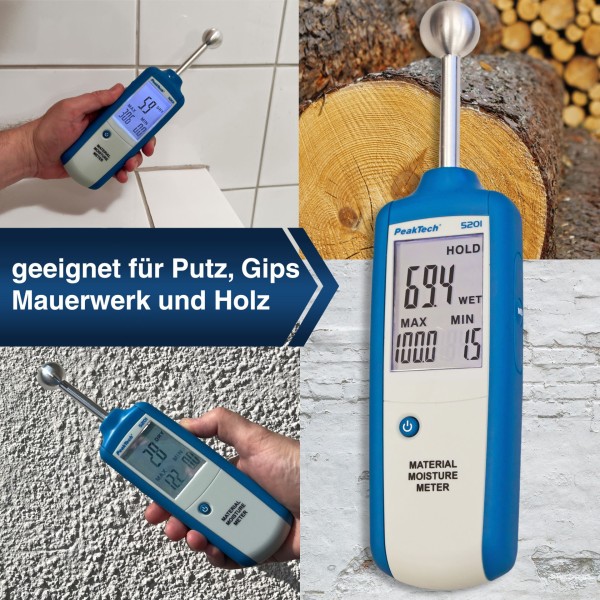

PeakTech 5201 - Material Moisture Meter

5201
$97.56

Material Moisture Meter

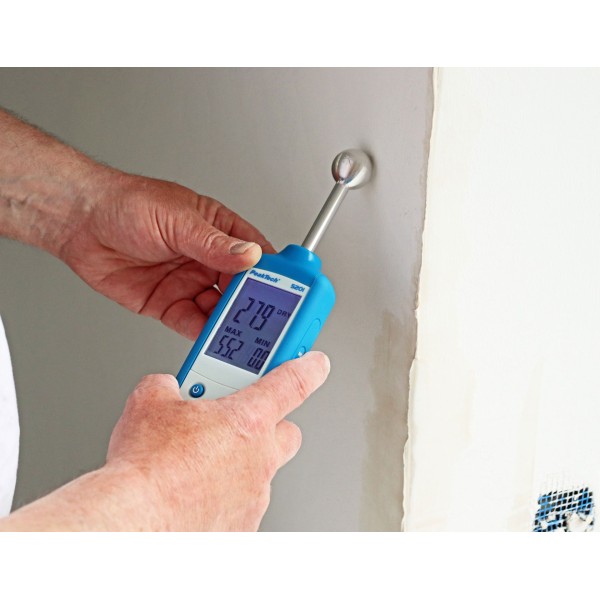

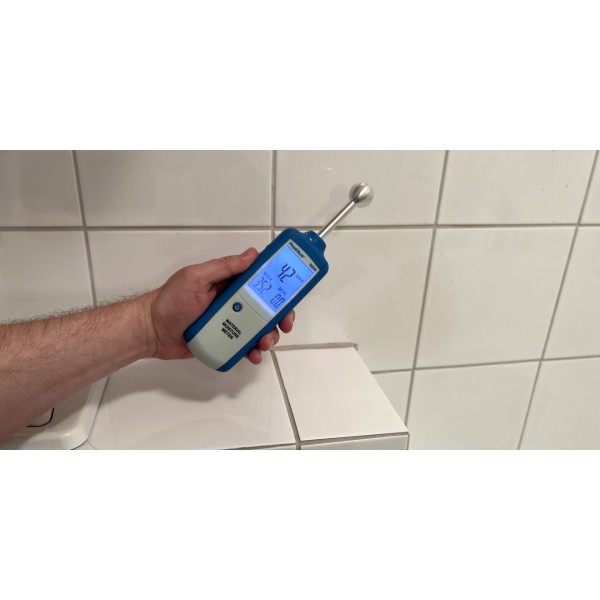

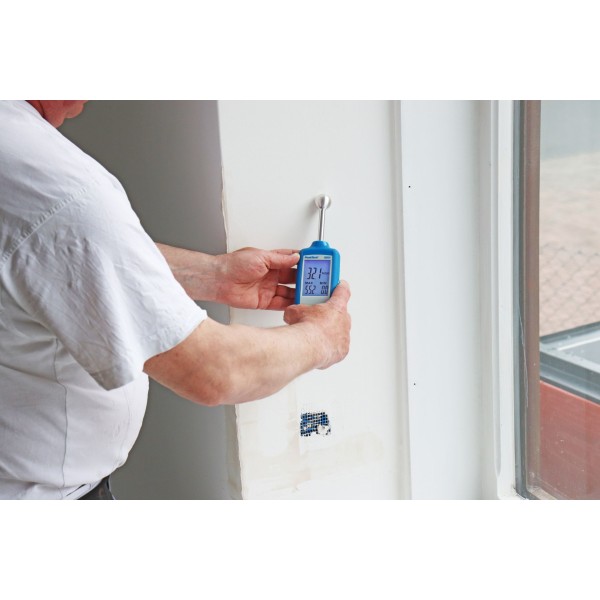

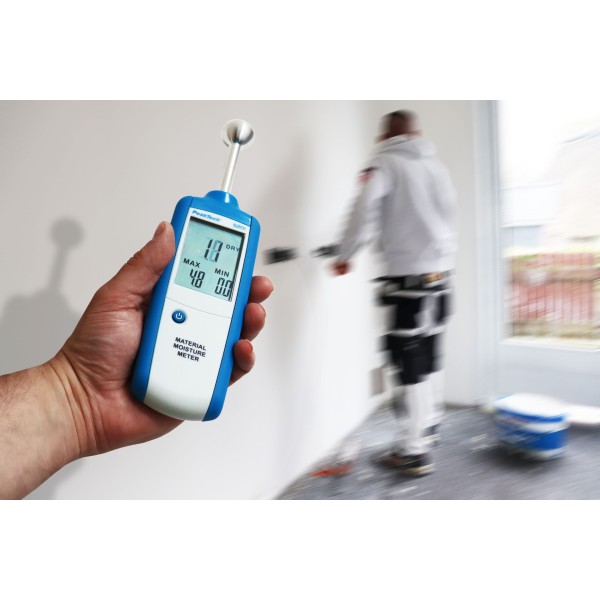

This new instrument is used for non-destructively tracing dampness in building material of all kinds as well for detecting damp distribution in walls, ceilings and floors.
The absolute humidity, as well as the minimum and maximum measured moisture are here shown in the large, illuminated digital display.
To measure also at difficult to reach positions, this device allows to hold the current measured value in the display by pressing the hold button.
Besides the measured values, the device shows a settable message "Dry, Wet or Risk" and also makes an audible warning tone for high humidity values.

Available
Security HTTPS protocol
Fast shipment worldwide
At your service 365 days a year

Material Moisture Meter

This new instrument is used for non-destructively tracing dampness in building material of all kinds as well for detecting damp distribution in walls, ceilings and floors.
The absolute humidity, as well as the minimum and maximum measured moisture are here shown in the large, illuminated digital display.
To measure also at difficult to reach positions, this device allows to hold the current measured value in the display by pressing the hold button.
Besides the measured values, the device shows a settable message "Dry, Wet or Risk" and also makes an audible warning tone for high humidity values.
To perform a fast and accurate measurement, this meter uses the electrical resistance of the material and also performs a self-calibration after switching on the device.
The variety of functions and the user-friendly handling of this device makes it suitable for all building owners, architects, craftsmen and hobbyists. Replaceable test-probes.

  • Moisture measurement of all building materials such as Plaster, Gypsum and masonry, same as wood

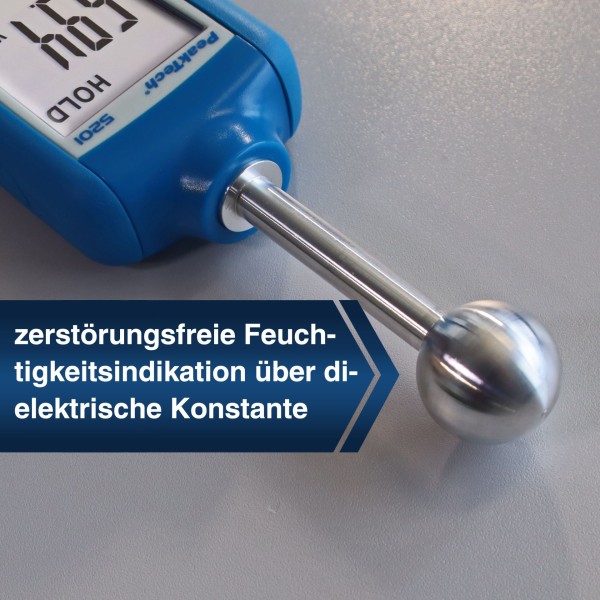

  • Damage-free measurement with a metal sensor
  • Material measurement depth of 20 to 40 mm

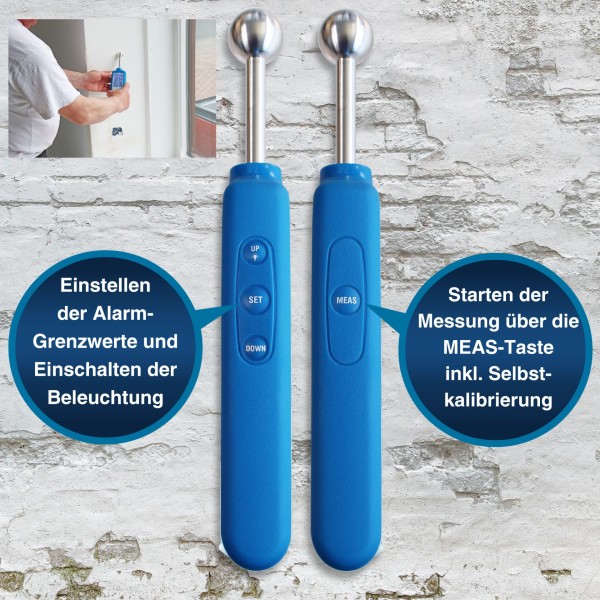

  • Self-calibration when the device starts
  • LCD display with backlight illumination
  • Shock and impact resistant housing
  • Easy to use and fast measurement rate
  • Data-Hold and Auto-Power-Off

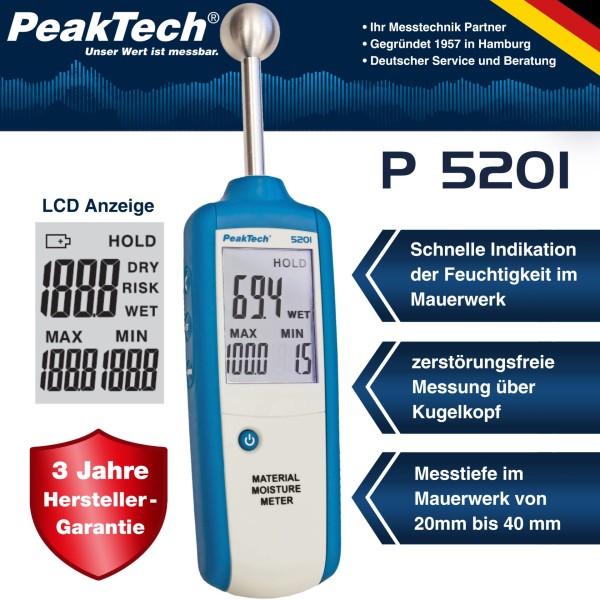

  • Display (Dry, Risk, Wet) for good-bad reading

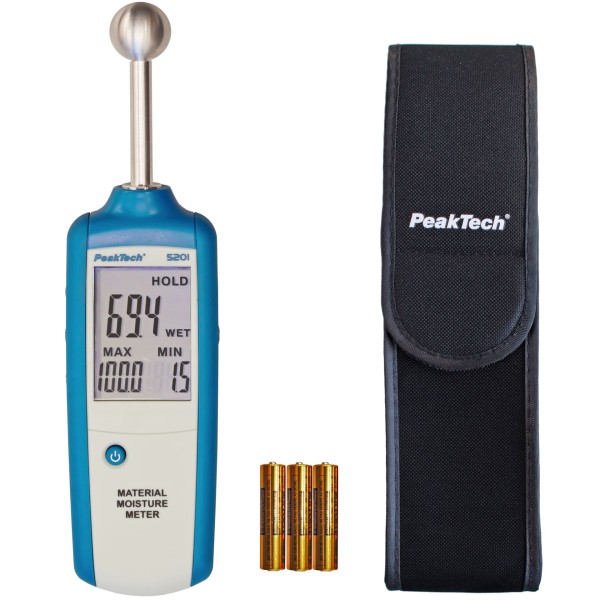

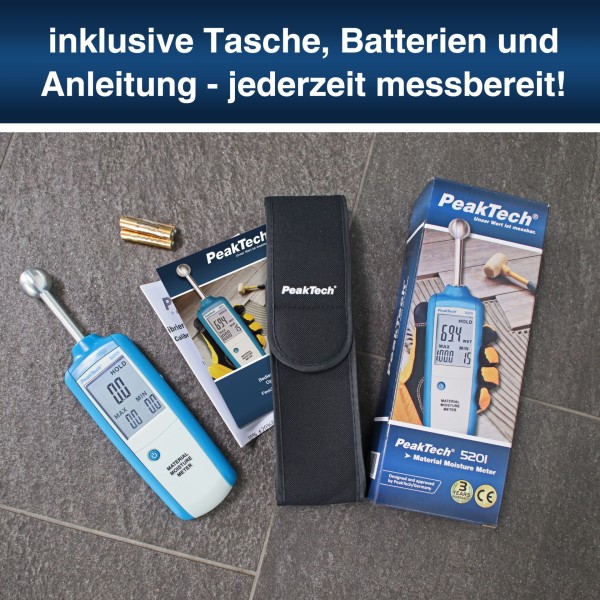

  • Accessories: Batteries, carrying case and user manual
Display 3 ½-digit LED Display
Measurement Range 0.0 ~ 100.0
Measuring Depth 20 ~ 40 mm
Measuring Principle Electrical Resistance
Type of Measurement Damage-Free Contact Measurement
Dimensions (WxHxD)   65 x 235 x 30 mm3
Weight 250 g

Download

Manual 5201 DE-EN

PeakTech_5201_08-2021_DE-EN.pdf

Download (742.26k)

Manual 5201 ES

PeakTech_5201_07-2021_ES.pdf

Download (600.21k)

Manuel 5201 FR-EN

PeakTech_5201_08-2021_FR_EN.pdf

Download (759.12k)

Manuale 5201 IT

PeakTech_5201_08-2021_IT.pdf

Download (563.12k)
