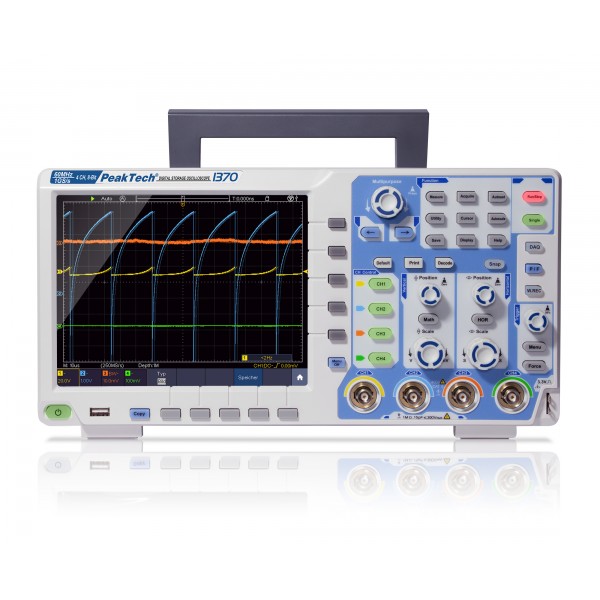

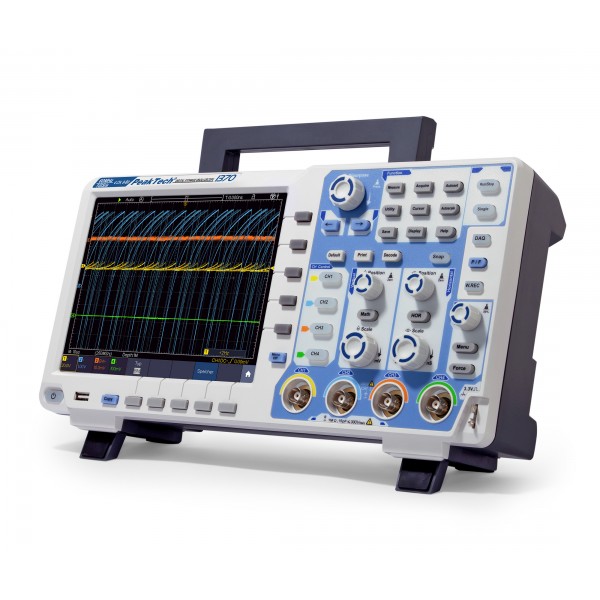

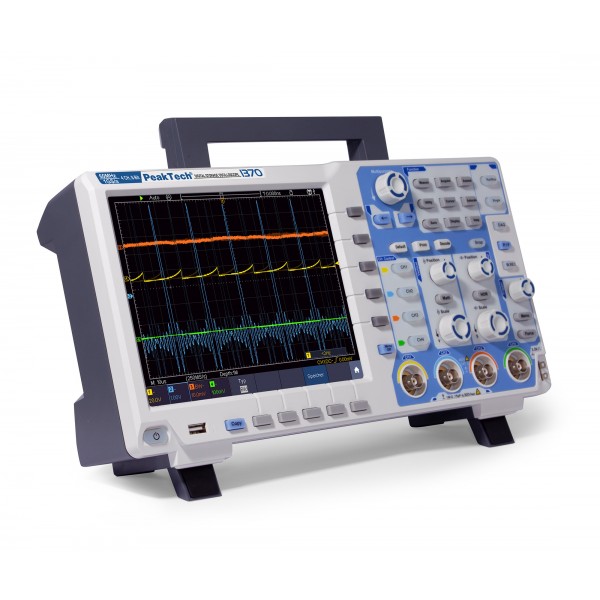

PeakTech 1370 - Oscilloscope Numérique 8 bits, Écran Tactile 8”, 2 Canaux 60 MHz 1 GS/s total, Multimètre 3 ¾ chiffres
Oscilloscope Numérique 12 bits, Écran Tactile 8”, 2 Canaux 60 MHz 1 GS/s total, Multimètre 3 ¾ chiffres
Oscilloscope numérique 4 canaux avec écran TFT "Touch screen" innovant.
Le contrôle des nombreuses fonctions peut être effectué soit avec les touches de fonction traditionnelles, soit avec la nouvelle technologie "touch screen".
L'écran TFT couleur haute résolution affiche les 4 canaux de mesure en même temps et convient également à la nouvelle fonction multi-fenêtre pour afficher le cycle temporel combiné de toutes les formes d'onde avec fonction zoom en plus des capacités étendues de mesure, cet oscilloscope a une interface de LAN pour l'intégration de réseau et une interface d'USB pour le transfert de données au PC.
Digital Oscilloscope 8 bits, Touchscreen 8", 4 Channels 60 MHz 1 GS/s, Multimeter 3 ¾ digit
4-channel digital storage oscilloscope of the latest generation with high-resolution TFT color display with integrated multimeter, VGA-Output & CAN-Bus decoder. This newly developed series offers a wide range of applications with ease of use in electrical engineering, industry, research and development.
- High-resolution TFT color display with 800 x 600 pixels
- 8" (20 cm) TFT color display
- LAN, WiFi & USB port for real time data transmission
- Saving of measured values and graphics to external USB memory device
- Use the optional battery (Model Akku 6) for off-grid operation
- Use the W-LAN interface for remote control in dangerous areas
- Integrated digital multimeter with 4000 counts
- Handy and flat case design with carrying handle
- Autoset function for easy operation
- Record lenght of max. 40 million points
- Automatic measurement modes and FFT function
- Safety: EN 61010-1; CAT II

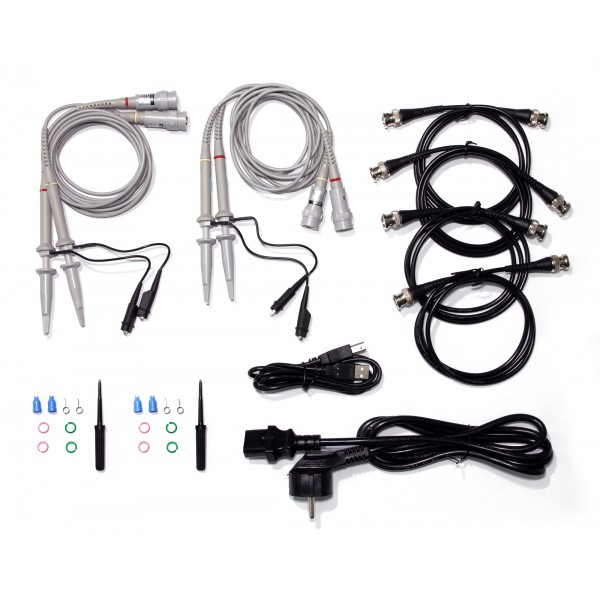

- Included accessories: 4 probes, 4 BNC cables, USB cable, software CD for Windows, power cable, carrying case, manual
Bandwidth | 60 MHz |
Display | 8" (20 cm) Touchscreen color-TFT |
Resolution | 800 x 600 Pixels |
Channels | 4 CH |
Vertical resolution | 8 bits |
Acquisition | |
---|---|
Sampling rate | 1 Channel: 1 GSa/s; 2 Channels: 500 MSa/s each; 4 Channels: 250 MSa/s each |
Record lenght (points) | 1 Channel: 40,000,000; 2 Channels: 20,000,000 each; 4 Channels: 10,000,000 each |
Waveform refresh rate | 45000 wfms/s |
Rise Time | ≤ 5.8 ns |
Vertical sensitivity | 1 mV - 10 V/div. |
Horizontal scale | 2ns - 1000s/div. |
Trigger type | Edge / Video / Pulse / Slope / CAN-BUS |
Trigger mode | Auto, Normal, Single |
Digital Multimeter - 3 ¾ digits (3999) | |
Input impedance | 10 MΩ |
DC Voltage | 400mV, 4V, 400V ±(1% +1dgt.), Max. 1000V |
AC Voltage | 4V, 40V, 400V ±(1% +3dgt.), Max. AC 750V (Frequency 40Hz-400Hz) |
DC Current | 40mA, 400mA ±(1.5% +1 dgt.); 10A ±(3% +3dgt.) |
AC Current | 40mA ±(1.5% +3 dgt.); 400mA ±(2% +1 dgt.); 10A ±(3% +3dgt.) |
Resistance | 400Ω ±(1% +3 dgt.); 4KΩ~40MΩ ±(1% +1 dgt.); 40MΩ ±(1.5% +3 dgt.) |
Diode test | 0V – 1.5V |
Continuity Tester | 50Ω (+/-30Ω) acoustic signal |
General | |
Interfaces | WiFi, LAN, USB Device, USB Host |
Battery (optional) | Model "AKKU 6" |
Operating voltage | 100 ~ 240 V AC 50 ~ 60 Hz |
Dimensions (WxHxD) | 340 x 175 x 90 mm3 |
Weight | 2.6 kg |
