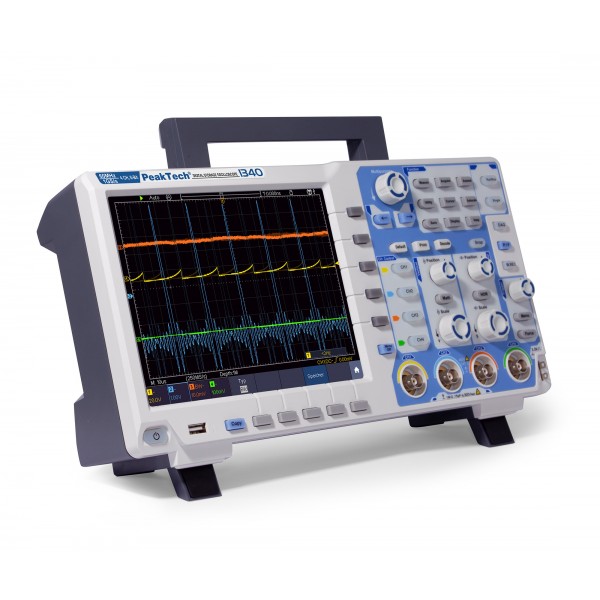

PeakTech 1340 - Oscilloscope Numérique 8 bits, 8", 4 Canaux 60 MHz 1 GS/s total

Référence : 1340

660,88 $US

Oscilloscope Numérique 8 bits, 8", 4 Canaux 60 MHz 1 GS/s total

Oscilloscope numérique à 4 canaux avec grand écran TFT couleur haute résolution de 20 cm (8 "), avec interfaces LAN, USB Host et USB Device.

En stock

Protocole HTTPS de sécurité

Expédition rapide dans le monde entier

A votre service 365 jours par an

4-channel digital oscilloscope with large 8" (20 cm) high resolution color TFT display, with LAN, USB Host and USB Device interfaces.

High-resolution TFT color display with 800 x 600 pixels
8" (20 cm) TFT color display
Interfaces LAN, USB Host and USB Device for real time data transmission
Saving of measured values and graphics on external USB memory device
Handy and flat case design with carrying handle
Autoset function for easy operation
Record lenght of max. 40 million points
Automatic measurement modes and FFT function
Safety: EN 61010-1; CAT II
Accessories included: 4 probes, 4 BNC cables, USB cable, software CD for Windows, power cable, carrying case, manual


Bandwidth	60 MHz
Display	8" (20 cm) color-TFT
Resolution	800 x 600 Pixels
Channels	4 CH
Vertical resolution	8 bits
Acquisition
Sampling rate	1 Channel: 1 GS/s; 2 Channels: 500 MS/s each; 4 Channels: 250 MS/s each
Record lenght (points)	1 Channel: 40,000,000; 2 Channels: 20,000,000 each; 4 Channels: 10,000,000 each
Waveform refresh rate	45,000 wfms/s
Rise Time	≤ 5.8 ns
Vertical sensitivity	1 mV - 10 V/div.
Horizontal scale	2ns - 1000s/div.
Trigger type	Edge/Video
Trigger mode	Auto, Normal, Single

General

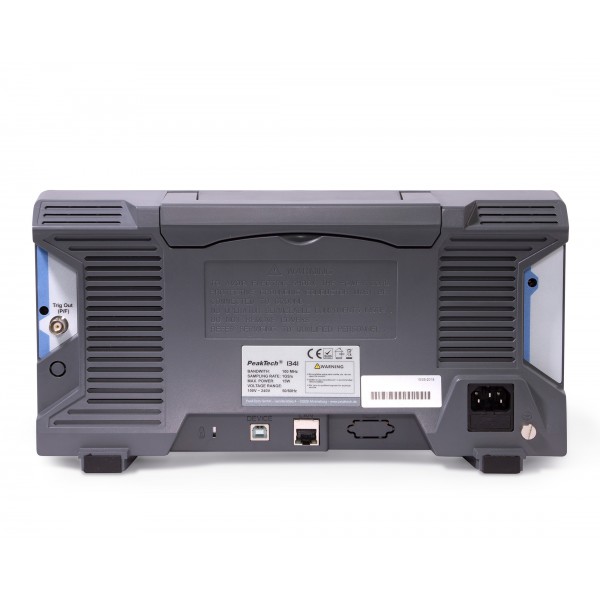

Interfaces	LAN, USB Device, USB Host
Battery (optional)	AKKU 6
Operating voltage	100 ~ 240 V AC 50 ~ 60 Hz
Dimensions (WxHxD)	340 x 175 x 90 mm³
Weight	2.5 kg
