PeakTech 1341 - Digital Oscilloscope 8 bits, 8", 4 Channels 100 MHz 1 GS/s total
1341
$823.66
Digital Oscilloscope 8 bits, 8", 4 Channels 100 MHz 1 GS/s total

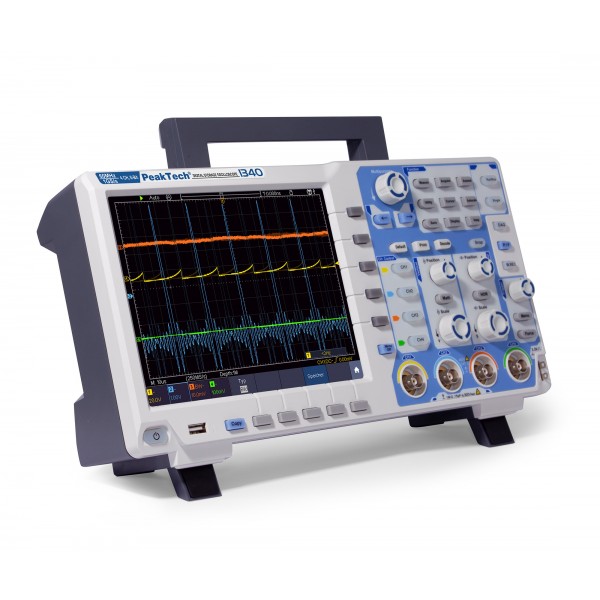

4-channel digital oscilloscope with large 8" (20 cm) high resolution color TFT display, with LAN, USB Host and USB Device interfaces.
Security HTTPS protocol
Fast shipment worldwide
At your service 365 days a year
Digital Oscilloscope 8 bits, 8", 4 Channels 100 MHz 1 GS/s total
4-channel digital oscilloscope with large 8" (20 cm) high resolution color TFT display, with LAN, USB Host and USB Device interfaces.
- High-resolution TFT color display with 800 x 600 pixels
- 8" (20 cm) TFT color display

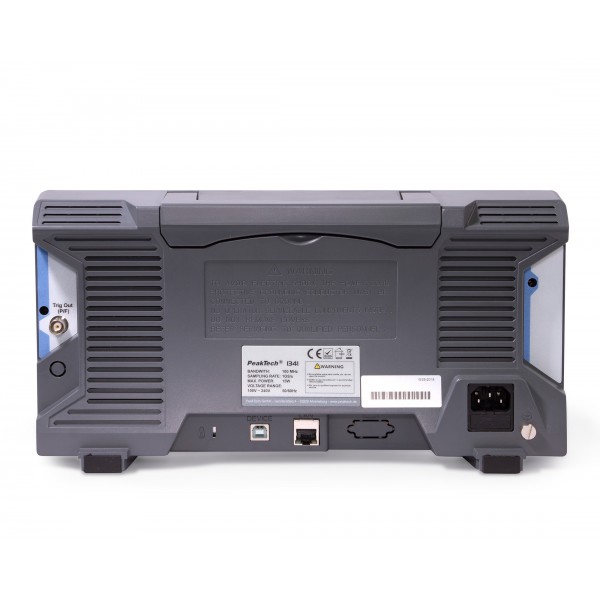

- Interfaces LAN, USB Host and USB Device for real time data transmission
- Saving of measured values and graphics on external USB memory device
- Handy and flat case design with carrying handle
- Autoset function for easy operation
- Record lenght of max. 40 million points
- Automatic measurement modes and FFT function
- Safety: EN 61010-1; CAT II

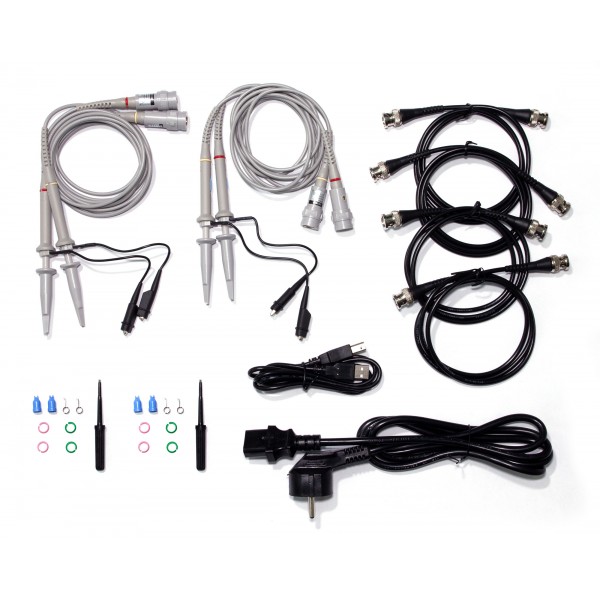

- Accessories included: 4 probes, 4 BNC cables, USB cable, software CD for Windows, power cable, carrying case, manual
| Bandwidth | 100 MHz |
| Display | 8" (20 cm) color-TFT |
| Resolution | 800 x 600 Pixels |
| Channels | 4 CH |
| Vertical resolution | 8 bits |
| Acquisition | |
|---|---|
| Sampling rate | 1 Channel: 1 GS/s; 2 Channels: 500 MS/s each; 4 Channels: 250 MS/s each |
| Record lenght (points) | 1 Channel: 40,000,000; 2 Channels: 20,000,000 each; 4 Channels: 10,000,000 each |
| Waveform refresh rate | 45,000 wfms/s |
| Rise Time | ≤ 3.5 ns |
| Vertical sensitivity | 1 mV - 10 V/div. |
| Horizontal scale | 2ns - 1000s/div. |
| Trigger type | Edge/Video |
| Trigger mode | Auto, Normal, Single |
| General | |
| Interfaces | LAN, USB Device, USB Host |
| Battery (optional) | AKKU 6 |
| Operating voltage | 100 ~ 240 V AC 50 ~ 60 Hz |
| Dimensions (WxHxD) | 340 x 175 x 90 mm3 |
| Weight | 2.5 kg |
