Laboratory Switching Power Supply

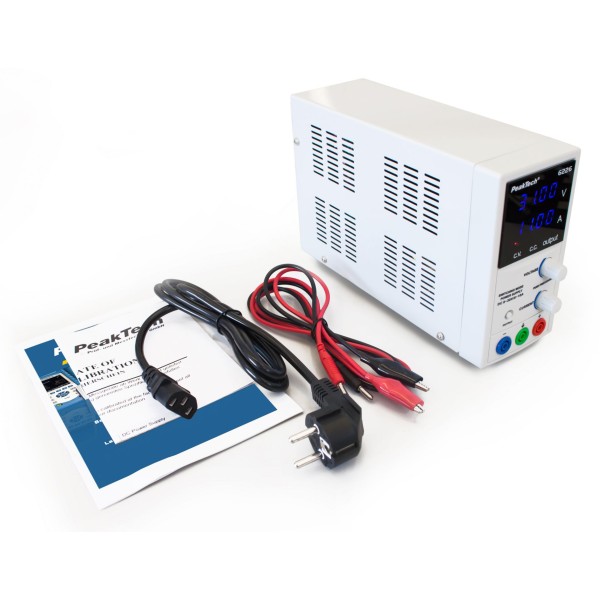

PeakTech 6226 - Laboratory Switching Power Supply, DC 0-30V 0-10A, Digital Meters

6226
$135.65

Laboratory Switching Power Supply, DC 0-30V 0-10A, Digital Meters

This switching mode power supply, due to its very handy shape and low weight, is ideal for applications in the development and education area.
The current and voltage are adjusted by digital potentiometers, whereby both values can also be adjusted when the output sockets are switched off.
By pressing the respective switch, the setting solution can be switched from 10mA to 100mA or 10mV to 1V.
The high visibility of the display, the easy operation and low weight, as well as the slim design are excellent conditions for use in education and service area.

Out-of-Stock
Security HTTPS protocol
Fast shipment worldwide
At your service 365 days a year

Laboratory Switching Power Supply, DC 0-30V 0-10A, Digital Meters

This switching mode power supply, due to its very handy shape and low weight, is ideal for applications in the development and education area.
The current and voltage are adjusted by digital potentiometers, whereby both values can also be adjusted when the output sockets are switched off.
By pressing the respective switch, the setting solution can be switched from 10mA to 100mA or 10mV to 1V.
The high visibility of the display, the easy operation and low weight, as well as the slim design are excellent conditions for use in education and service area.

  • Blue LED display to show the output voltage and current values
  • Adjustable voltage range: 0 ~ 30 V; Current range: 0 ~ 10 A
  • Voltage and current pre-selection with switchable output
  • C.C. (Constant Current) and C.V. (Constant Voltage) mode with connected load
  • Protection against short circuit, overload and over-temperature
  • Automatic shutdown at short circuit as protection
  • Safety: EN-61010-1
  • Accessories: power cable, manual
Output voltage range 0 - 30 V
Output current range 0 - 10 A
Output Power 300 W
Display Voltage 10mV (0 to 30V)
Display Current 1mA (0 to 9.9A) ; 10mA (from 10A)
Ripple & noise ≤ 10 mV rms; ≤ 10 mA rms
Load regulation ≤ 0.02% + 5 mV
Line regulation ≤ 0.02% + 10 mV
Display accuracy ±(0.5% + 5 digits)
Protection Overload, overtemperature, short circuit protections by constant current circuitry and output overvoltage
Operating voltage 115/230 V AC switchable extern.; 50/60 Hz
Dimensions (WxHxD)   78 x 160 x 255 mm3
Weight 2.6 kg

Download

Manual 6226 DE-EN

PeakTech_6225A_6226_09-2021_DE-EN.pdf

Download (632.89k)

Manual 6226 ES

PeakTech_6225A_6226_06-2021_ES.pdf

Download (438.79k)

Manuel 6226 FR

PeakTech_6225A_6226_06-2021_FR.pdf

Download (609.22k)

Manuale 6226 IT

PeakTech_6225A_6226_02-2023_IT.pdf

Download (517.77k)

Podręcznik 6226 PL

PeakTech_6225A_6226_06-2023_PL.pdf

Download (765.29k)
