Laboratory Switching Power Supply

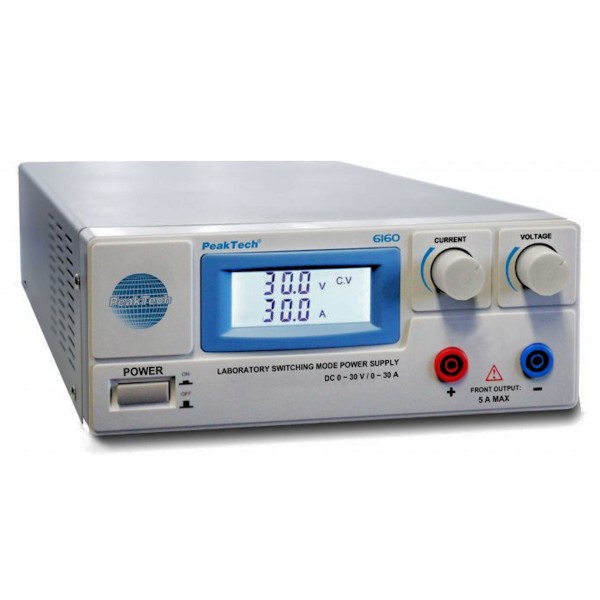

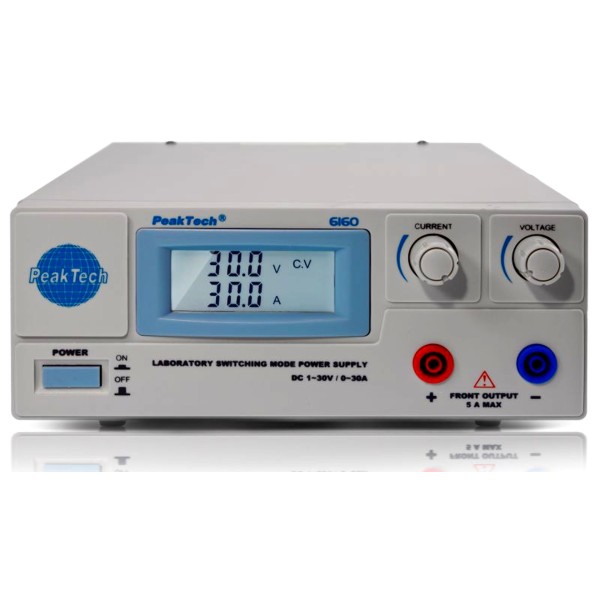

PeakTech 6160 - Laboratory Switching Power Supply, DC 1-30V 0-30A, Digital Meters

6160
$330.81

Laboratory Switching Power Supply, DC 1-30V 0-30A, Digital Meters

A newly developed switching mode power supply for a wide range of applications in the telecommunications, laboratory and industry. This power supply has an extraordinary resistance to RF interference from close range.
The constant-current protection, over voltage protection and protection against over-temperature at constant current ensure high reliability and durability of this power supply.

Available
Security HTTPS protocol
Fast shipment worldwide
At your service 365 days a year

Laboratory Switching Power Supply, DC 1-30V 0-30A, Digital Meters

A newly developed switching mode power supply for a wide range of applications in the telecommunications, laboratory and industry. This power supply has an extraordinary resistance to RF interference from close range.
The constant-current protection, over voltage protection and protection against over-temperature at constant current ensure high reliability and durability of this power supply.

  • High efficiency
  • Short-circuit protected
  • Adjustable voltage range: 1 ~ 30 V

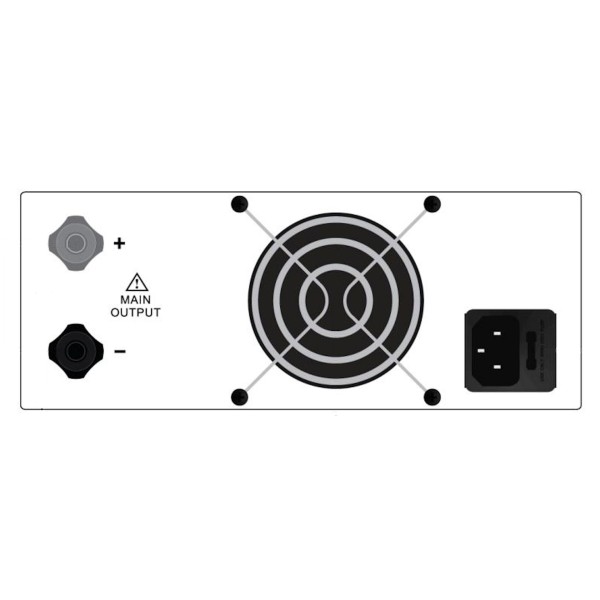

  • DC output: binding posts at the back up to 30 A
  • Safety: EN 61010-1
  • Accessories: power cable, manual
Output voltage 1 - 30 V DC
Output current 0 - 30 A / 0 - 5 A (rear panel main output / front output)
Ripple and noise 100 mVpp (0 - 100% load)
Voltage and current display   LCD 3 digit ±(1% + 3 digits)
Protection Constant current and short circuit protection
Operating voltage 230 V AC; 50 Hz
Dimension (WxHxD) 214 x 87 x 336 mm3
Weight 3 kg

Download

Manual

PeakTech_6155_6160_01_2016.pdf

Download (470.2k)
