Laboratory Switching Power Supply

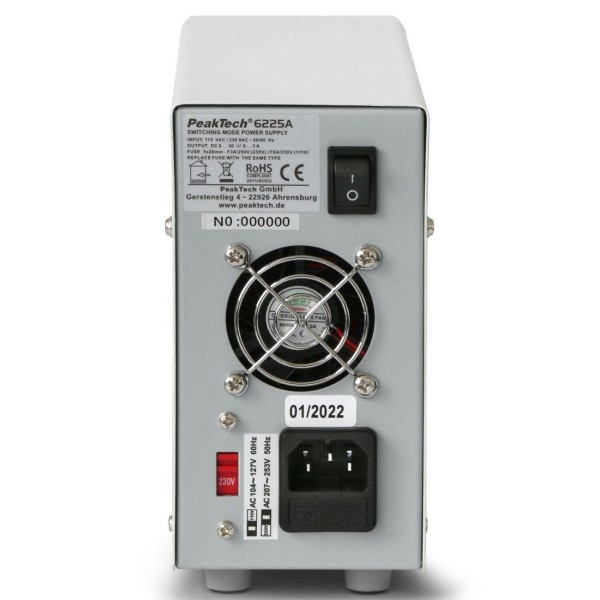

PeakTech 6225A - Laboratory Switching Power Supply, DC 0-30V 0-5A, Digital Meters

6225A
$85.73

Laboratory Switching Power Supply, DC 0-30V 0-5A, Digital Meters

This switching mode power supply, due to its very handy shape and low weight, is ideal for applications in the development and education area.
The highly visibile display, the easy operation and low weight, as well as the slim design are excellent conditions for use in education and service area.

Available
Security HTTPS protocol
Fast shipment worldwide
At your service 365 days a year

Laboratory Switching Power Supply, DC 0-30V 0-5A, Digital Meters

This switching mode power supply, due to its very handy shape and low weight, is ideal for applications in the development and education area.
The highly visibile display, the easy operation and low weight, as well as the slim design are excellent conditions for use in education and service area.

  • Adjustable voltage range: 0 ~ 30 V
  • Adjustable current range: 0 ~ 5 A
  • Blue LED display to show the output voltage and current values
  • High effiency > 85%
  • Low ripple & noise
  • Protection against short circuit, overload and over-temperature
  • Safety: EN-61010-1
  • Accessories: power cable, manual
Output voltage range 0 - 30 V
Output current range 0 - 5 A
Ripple & noise ≤ 3 mV RMS; ≤ 3 mA RMS
Load regulation ≤ 0.01% +5 mV
Line regulation ≤ 0.01% + 1 mV
Display accuracy ±(0.1% + 2 digits)
Protection Overload, overtemperature, short circuit, overvoltage
Operating voltage 115/240 V AC; 50/60 Hz
Dimensions (WxHxD)   80 x 160 x 260 mm3
Weight 1.5 kg

Download

Manual 6225A DE-EN

PeakTech_6225A_6226_09-2021_DE-EN.pdf

Download (632.89k)

Manual 6225A ES

PeakTech_6225A_6226_06-2021_ES.pdf

Download (438.79k)

Manuel 6225A FR

PeakTech_6225A_6226_06-2021_FR.pdf

Download (609.22k)

Manuale 6225A IT

PeakTech_6225A_6226_02-2023_IT.pdf

Download (517.77k)

Podręcznik 6225A PL

PeakTech_6225A_6226_06-2023_PL.pdf

Download (765.29k)
