PeakTech 1362 - Osciloscopio Digital 8bits, Pantalla Táctil 8”,2 Canales 200 MHz 2 GS/s, Multímetro 3¾ dígitos, Generador 25 MHz
Osciloscopio Digital 8 bits, Pantalla Táctil 8", 2 Canales 200 MHz 2 GS / s total, Multímetro Integrado de 3 ¾ dígitos, Generador de Forma de Onda Integrado 25 MHz.
Osciloscopio digital con pantalla táctil, de 2 canales con gran pantalla a color TFT de 8"
Multímetro integrado de 3 ¾ dígitos.
Generador de forma de onda integrado 25 MHz

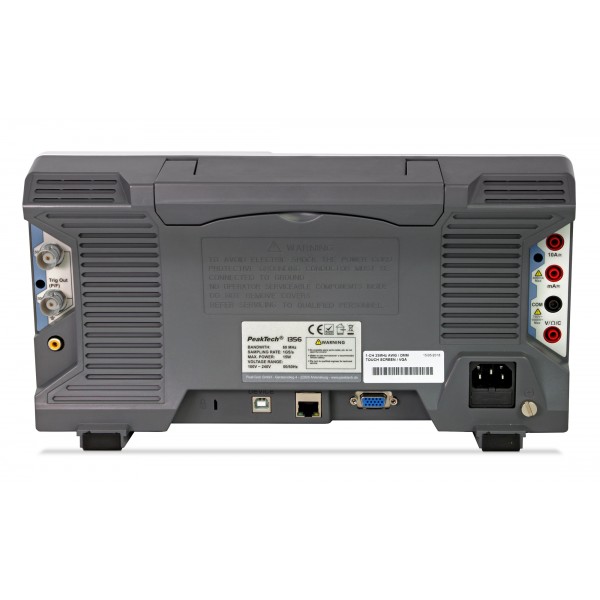

Interfaces LAN, USB Host, USB Device y WiFi para la transmisión de datos de los valores medidos a una PC o para el control remoto.
Interfaz VGA para monitor externo.
Digital Oscilloscope 8 bits, Touchscreen 8", 2 Channels 200 MHz 2 GS/s total, Integrated Multimeter 3 ¾ digits, Integrated Waveform Generator 25 MHz.
Oscilloscope with touch screen, with 2 channels and large 8" TFT color display.
Integrated multimeter 3 ¾ digits.
Integrated waveform generator 25 MHz.
LAN, USB Host, USB Device and WiFi interfaces for the transmission of measured data to a PC or for remote control.
VGA interface for external monitor.
- 8" (20 cm) High-resolution TFT color display with 800 x 600 pixels
- LAN & USB ports for real time data transmission
- VGA port for external monitor
- Saving of measured values and graphics to external USB memory device
- Use the optional battery (Model Akku 6) for operation when mains power is not available
- Handy and flat case design with carrying handle
- Autoset function for easy operation
- Record lenght of max. 40 Mega Points
- Automatic measurement modes and FFT function
- Safety: EN 61010-1; CAT II
- Accessories included: USB cable, software CD for Windows, power cable, 2 probes, carrying case, manual
Bandwidth | 200 MHz |
Display | 8" (20 cm) Touchscreen color-TFT |
Resolution | 800 x 600 Pixels |
Channels | 2 Channels |
Sampling Rate | 1 Channel: 2 GS/s; 2 Channels: 1 GS/s each |
Record lenght (points) | 1 Channel: 40,000,000; 2 Channels: 20,000,000 points each |
Waveform Refresh Rate | 75,000 wfms/s |
Rise Time | ≤ 1.75 ns |
Vertical Sensitivity | 1 mV - 10 V/div. |
Vertical Resolution | 8 bits |
Horizontal Scale | 1 ns - 1000 s / div. |
Trigger Type | Edge/Video/Pulse/Slope ... |
Trigger Mode | Auto, Normal, Single |
Interfaces | LAN, USB Device, USB Host, VGA |
Operating Voltage | 100 ~ 240 V AC 50 ~ 60 Hz |
Power Consumption | < 15W |
Battery (optional) | AKKU 6 |
Dimensions (WxHxD) | 340 x 175 x 90 mm3 |
Weight | 2.6 kg |
Digital Multimeter - 3 ¾ digits (3999) | |
---|---|
Input impedance | 10 MΩ |
DC Voltage | 400mV, 4V, 400V ±(1% +1dgt.), Max. 1000V |
AC Voltage | 4V, 40V, 400V ±(1% +3dgt.), Max. AC 750V (Frequency 40Hz-400Hz) |
DC Current | 40mA, 400mA ±(1.5% +1 dgt.); 10A ±(3% +3dgt.) |
AC Current | 40mA ±(1.5% +3 dgt.); 400mA ±(2% +1 dgt.); 10A ±(3% +3dgt.) |
Resistance | 400Ω ±(1% +3 dgt.); 4KΩ~40MΩ ±(1% +1 dgt.); 40MΩ ±(1.5% +3 dgt.) |
Diode test | 0V – 1.5V |
Continuity Tester | 50Ω (+/-30Ω) acoustic signal |
Waveform Generator - 25 MHz | |
Output voltage range | 10 mVpp - 6 Vpp |
Vertical resolution | 125 MS/s |
Sampling rate | 4V, 40V, 400V ±(1% +3dgt.), Max. AC 750V (Frequency 40Hz-400Hz) |
Waveform length | 8 K points |
Standard waveforms | Sine, Square, Ramp, Pulse |
Arbitrary waveforms | 46 Built-in |
