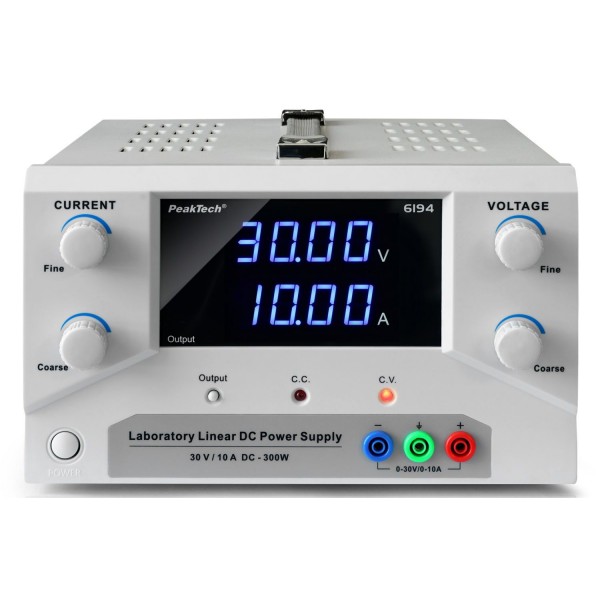

PeakTech 6194 - Laboratory Power Supply DC, 0-30V 0-10A, Digital Meters of Voltage and Current

6194
$21,145.67

Laboratory Power Supply DC, 0-30V 0-10A, Digital Meters of Voltage and Current

Linear laboratory power supply, reliable and safe thanks to the integrated isolation transformer.
It has adjustable output from 0 to 30 V and 0 to 10 A.
The values ​​can be set quickly and precisely with coarse and fine adjustments.
The set values ​​are taken over by the power supply by pressing the "Output" button, preventing unintentional changes.
The four-digit blue LED displays indicate precisely the output voltage and current.

Supplied with IEC power cable with EU plug.
Alternatively, at the same price, it can be requested with a UK or US plug cable. Please specify when ordering.

Contact us on WhatsApp
Available

Laboratory Power Supply DC, 0-30V 0-10A, Digital Meters of Voltage and Current

Linear laboratory power supply, reliable and safe thanks to the integrated isolation transformer.
It has adjustable output from 0 to 30 V and 0 to 10 A.
The values ​​can be set quickly and precisely with coarse and fine adjustments.
The set values ​​are taken over by the power supply by pressing the "Output" button, preventing unintentional changes.
The four-digit blue LED displays indicate precisely the output voltage and current.
The temperature-controlled fan ensures efficient and silent cooling.
This laboratory power supply is ideal for users who appreciate precise settings, safe operation and reliable performance.

Supplied with IEC power cable with EU plug.
Alternatively, at the same price, it can be requested with a UK or US plug cable. Please specify when ordering.

  • 4mm safety output bushings
  • DC Outputs adjustable from 0 - 30 V and 0 - 10 A
  • 4-digit blue LED display for accurate indication of the output voltage and current
  • Potentiometers for coarse and fine adjustments
  • Overload protection and short circuit proof
  • Temperature controlled fan
  • High load stability and low residual ripple

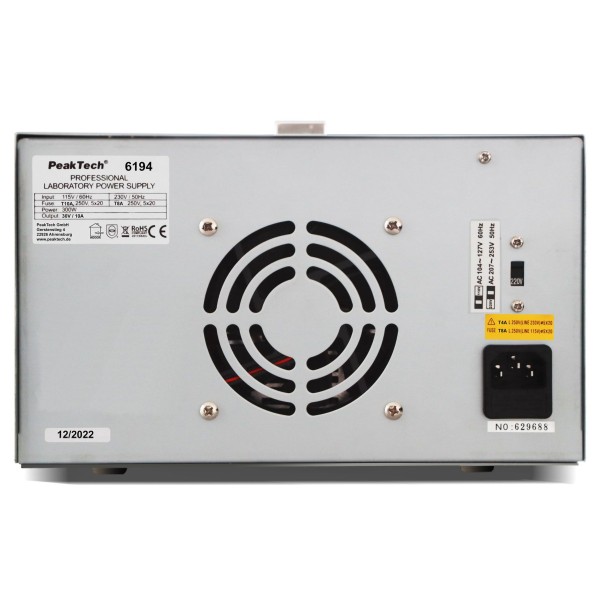

  • Mains Voltage 115 V AC 60 Hz / 230 V AC 50Hz, switchable
  • Sturdy metal housing with carrying handle
  • Safety: EN-61010-1, EN 61558-2-6
  • Accessories: IEC power cable with EU plug, instruction manual
Output Voltage 0 ... 30 V DC
Output Current 0 ... 10 A DC
Line regulation - CV ≤ 0.01% + 3 mV
Line regulation - CC ≤ 0.2% + 3 mA
Load regulation - CV ≤ 0.05% + 5 mV
Load regulation - CC ≤ 0.5% + 5 mA
Ripple - CV ≤ 1 mV rms
Ripple - CC ≤ 3 mA rms
Overload protection Short circuit proof constant current limitation
Voltmeter accuracy  ≤ 0.5% + 5 digits
Ammeter accuracy ≤ 0.5% + 5 digits
Mains Voltage 104 ~ 127 V AC 60 Hz / 207 ~ 253 V AC 50Hz, switchable
Operating temperature    0°C ... +40°C; < 90% RH
Dimensions (WxHxD)    255 x 160 x 335 mm3
Weight 9 kg

Download

Manual 6194 DE-EN

PeakTech_6190-6194_06-2025_DE-EN.pdf

Download (1.13MB)

Manual 6194 ES-PT

PeakTech_6190-6194_06-2025_ES-PT.pdf

Download (944.67KB)
