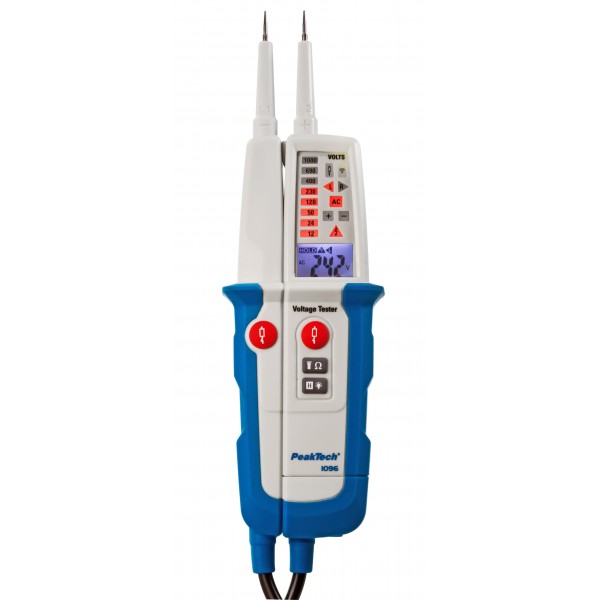

PeakTech 1096 - Détecteur de Tension CC/CA, Test RCD, Double Affichage, 3 ½ chiffres

AC/DC Voltage Tester with RCD Test and Dual Display, 3 ½ digits

PeakTech 1096 is a new instrument for measuring voltages accurately and quickly at the same time thanks to a 3 ½ digit backlit LCD display and a coarse LED indication of the usual voltage range.

The detection of a phase conductor and a direction of rotation display for 3-phase systems are already integrated in this tester.

The low impedance measurement function can be activated to avoid false indications due to capacitively induced voltages or to test RCDs.

Furthermore, a continuity test is integrated, to be used only on voltage free conductors. When continuity is detected, the continuity check LED will illuminate and the beeper will sound.

The backlight of the LCD display and the integrated LED flashlight can be switched on and off separately.

PeakTech 1096 has been tested by TÜV / GS for maximum user safety.

Thanks to all these numerous functions, this practical and safe measuring device is ideal for everyday use for testing, maintenance and new installation of electrical systems.

• Testing of DC and AC voltages up to 1000 V
• +/- polarity display for DC measuring range
• Find phase conductors with V > 100 V
• Detects the direction of rotation of three-phase voltage
• Resistance measurement up to 1999 Ω
• Continuity test with LED and acoustic signal
• Can perform low impedance measurements (Low Z)
• Test the operation of residual current circuit breakers (RCDs)
• Integrated LED flashlight
• IP 64 - dust and splash proof housing
• Safety: EN 61243-3; TUV / GS; CAT III 1000 V / CAT IV 600 V
• Accessories: bag, 2 batteries, instruction manual
