PeakTech 3690 - Multimètre Numérique, 3 4/5 chiffres (3999) 15mm, Fréquencemètre, Sonomètre, Thermomètre, Hygromètre, Photomètre
Multimètre Numérique, 3 4/5 digit (3999), Fréquencemètre, Sonomètre, Thermomètre, Hygromètre, Photomètre
Professional Multitester avec un grand écran LCD rétro-éclairé qui affiche deux lignes de données. La première ligne affiche toujours l'humidité et la température de l'air. La deuxième ligne affiche la quantité mesurée.
Combiner Sonomètre, photomètre, hygromètre, thermomètre et multimètre dans un seul instrument numérique.
Les capteurs du sonomètre, luxmètre, hygromètre et thermomètre sont contenus dans l'instrument.
Il est également équipé d'un thermomètre à thermocouple de type k.



Digital Multimeter, 3 4/5 digits (3999) 15mm, Frequency Meter, Phonometer, Thermometer, Hygrometer, Luxmeter

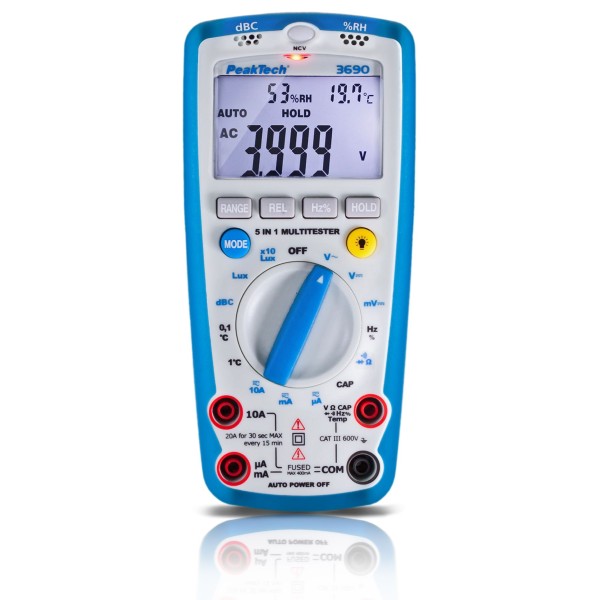

Professional multitester with large LCD, showing 2 lines of readings and supplied with backlight for easy reading.
This multitester combines the functions of sound, lux, humidity, temperature measurements, with a digital multimeter.
It provides additional protection against damages caused by improper operation.
- 3 4/5 digit 15mm display, max 4000 counts
- The sound level function is suitable to measure sound levels in factories, schools, offices, airports, and for testing the acoustics of studios, auditoriums and hi-fi systems.
- The Luxmeter function measures the lighting conditions outdoor with full cosine correction at oblique incidence of light.
- The Hygrometer and Thermometer functions are suitable for measuring ambient humidity and temperature, as well as temperature of objects.
- The digital Multimeter can perform measurements of AC/DC voltage and current, resistance, frequency, duty cycle, capacity, as well as continuity and diode tests.
- Overload protection.
- Data Hold.
- Automatic and manual range selection.
- Relative value measurement function.
- Auto power off function and low battery indication.
- Hold function.
- Safety: EN 61010-1; CAT III 600V.

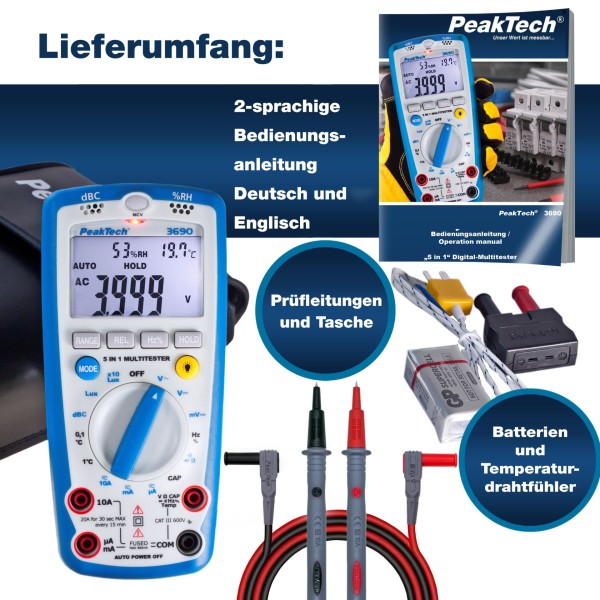

- Accessories: test leads, temperature probe, carrying case, battery, manual.
DC V | 400mV / 4 / 40 / 400 / 600V; 0.1mV; ± (1% + 4 digits) |
AC V | 400mV / 4 / 40 / 400 / 600V; 0.1mV; ± (1% + 4 digits) frequency range: 50 - 400Hz |
DC A | 400µA / 4 / 40 / 400mA / 4 / 10A; 0.1µA; ± (1% + 2 digits) |
AC A | 400µA / 4 / 40 / 400mA / 4 / 10A; 0.1µA; ± (1.2% + 2 digits) frequency range: 50 - 400Hz |
Ohm | 400Ω / 4 / 40 / 400kΩ / 4 / 40MΩ; 0.1Ω; ± (1.5% + 2 digits) |
Capacity | 50 / 500nF / 5 / 50 / 100µF; 10pF; ± (3.0% + 5 digits) |
Frequency | 5 / 50 / 500Hz / 5 / 50 / 500kHz / 10MHz; 1mHz; ± (1.2% + 3 digits) |
Relative Humidity % | 33 - 99; 0.1; ± (3% + 5) |
Temperature (NTC Internal sensor) | 0 to +50°C; 1°C; ± (3% + 3°C) |
Temperature (Thermocouple K) | -20 to +1300°C; 0.1°C; ± (3% + 3°C) |
Lux | 4000 / 40000 Lux; 1 Lux; ± (5.0% + 10 digits) |
Sound | 35 - 100dB; 0.1dB; ± 5dB @ (94dB, 1kHz) |
Operating voltage | 1 x 9V battery |
Dimensions (WxHxD) | 78x170x48mm3 |
Weight | 335g |
