PeakTech 3690 - Multímetro Digital, 3 4/5 dígitos (3999) 15mm, Medidor de Frecuencia, Sonómetro, Termómetro,Higrómetro,Luxómetro

3690
80,80 $

Multímetro Digital, 3 4/5 dígitos (3999), Medidor de Frecuencia, Sonómetro, Termómetro, Higrómetro, Luxómetro

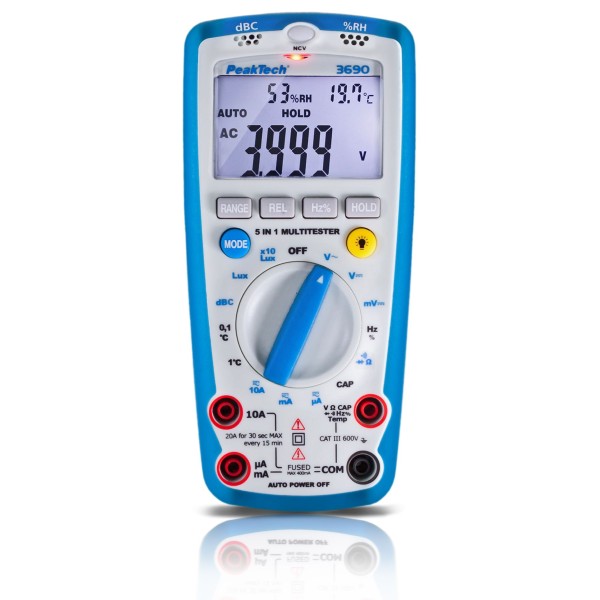

Profesional Multitester con una gran pantalla LCD retroiluminada que muestra dos líneas de datos. La primera línea siempre muestra la humedad y la temperatura del aire. La segunda línea muestra la cantidad que se está midiendo.
Combine sonómetro, luxómetro, higrómetro, termómetro y multímetro en un solo instrumento digital.
Los sensores del sonómetro, luxómetro, higrómetro y termómetro están contenidos en el instrumento.
También está equipado con un termómetro termopar tipo k.

Disponible
Protocolo de seguridad HTTPS
Envío rápido en todo el mundo
A su servicio los 365 días del año

Digital Multimeter, 3 4/5 digits (3999) 15mm, Frequency Meter, Phonometer, Thermometer, Hygrometer, Luxmeter

Professional multitester with large LCD, showing 2 lines of readings and supplied with backlight for easy reading.
This multitester combines the functions of sound, lux, humidity, temperature measurements, with a digital multimeter.
It provides additional protection against damages caused by improper operation.

  • 3 4/5 digit 15mm display, max 4000 counts
  • The sound level function is suitable to measure sound levels in factories, schools, offices, airports, and for testing the acoustics of studios, auditoriums and hi-fi systems.
  • The Luxmeter function measures the lighting conditions outdoor with full cosine correction at oblique incidence of light.
  • The Hygrometer and Thermometer functions are suitable for measuring ambient humidity and temperature, as well as temperature of objects.
  • The digital Multimeter can perform measurements of AC/DC voltage and current, resistance, frequency, duty cycle, capacity, as well as continuity and diode tests.
  • Overload protection.
  • Data Hold.
  • Automatic and manual range selection.
  • Relative value measurement function.
  • Auto power off function and low battery indication.
  • Hold function.
  • Safety: EN 61010-1; CAT III 600V.

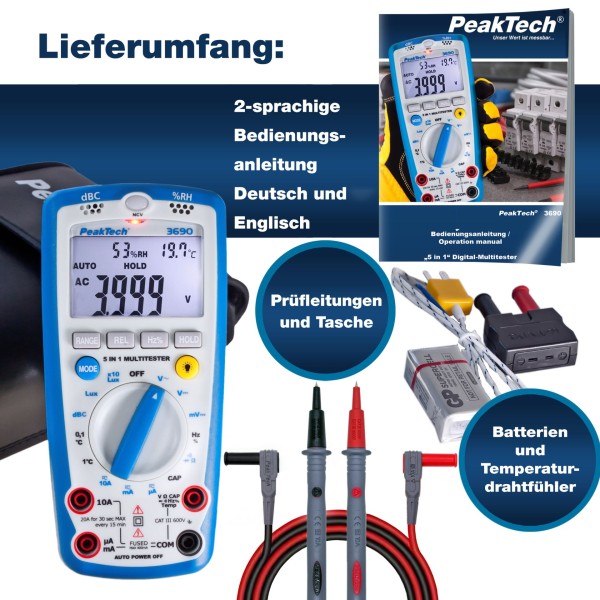

  • Accessories: test leads, temperature probe, carrying case, battery, manual.
DC V 400mV / 4 / 40 / 400 / 600V; 0.1mV; ± (1% + 4 digits)
AC V 400mV / 4 / 40 / 400 / 600V; 0.1mV; ± (1% + 4 digits)
frequency range: 50 - 400Hz
DC A 400µA / 4 / 40 / 400mA / 4 / 10A; 0.1µA; ± (1% + 2 digits)
AC A 400µA / 4 / 40 / 400mA / 4 / 10A; 0.1µA; ± (1.2% + 2 digits)
frequency range: 50 - 400Hz
Ohm 400Ω / 4 / 40 / 400kΩ / 4 / 40MΩ; 0.1Ω; ± (1.5% + 2 digits)
Capacity 50 / 500nF / 5 / 50 / 100µF; 10pF; ± (3.0% + 5 digits)
Frequency 5 / 50 / 500Hz / 5 / 50 / 500kHz / 10MHz; 1mHz; ± (1.2% + 3 digits)
Relative Humidity % 33 - 99; 0.1; ± (3% + 5)
Temperature (NTC Internal sensor) 0 to +50°C; 1°C; ± (3% + 3°C)
Temperature (Thermocouple K) -20 to +1300°C; 0.1°C; ± (3% + 3°C)
Lux 4000 / 40000 Lux; 1 Lux; ± (5.0% + 10 digits)
Sound 35 - 100dB; 0.1dB; ± 5dB @ (94dB, 1kHz)
Operating voltage 1 x 9V battery
Dimensions (WxHxD)   78x170x48mm3
Weight 335g

Descargar

Manual 3690 DE-EN

PeakTech_3690_03-2023_DE-EN.pdf

Descargar (1.02M)

Manual 3690 ES

PeakTech_3690_03-2023_ES.pdf

Descargar (853.73k)

Manuel 3690 FR

PeakTech_3690_03-2023_FR.pdf

Descargar (861.12k)

Manuale 3690 IT

PeakTech_3690_03-2023_IT.pdf

Descargar (850.46k)
