PeakTech 2025A - Multímetro Digital 3 5/6 dígitos (5999) 27mm, Barra Gráfica, Rango Automát., Frecuencia, hFE, Termómetro K, USB
Multímetro Digital de 3 5/6 dígitos (5999) 27 mm, Barra Gráfica de 61 Segmentos, Rango Automático, Medidor de Frecuencia, Transistor hFE, Termómetro K, USB
Multímetro digital con una amplia gama de funciones para medir magnitudes eléctricas.
Equipado con interfaz USB y software para registro de datos durante largos períodos.
Gran pantalla LCD retroiluminada con caracteres de 27 mm de altura y barra gráfica 61-segmento.
Contenedor de doble aislamiento con revestimiento de goma y puerta trasera para reemplazo de batería y fusible.
Estándar de seguridad de voltaje CAT III 1000V.
Digital Multimeter 3 5/6 digits (5999) 27mm, 61 Segments Bargraph, Autorange, Frequencymeter, Transistor hFE, Thermometer K, USB

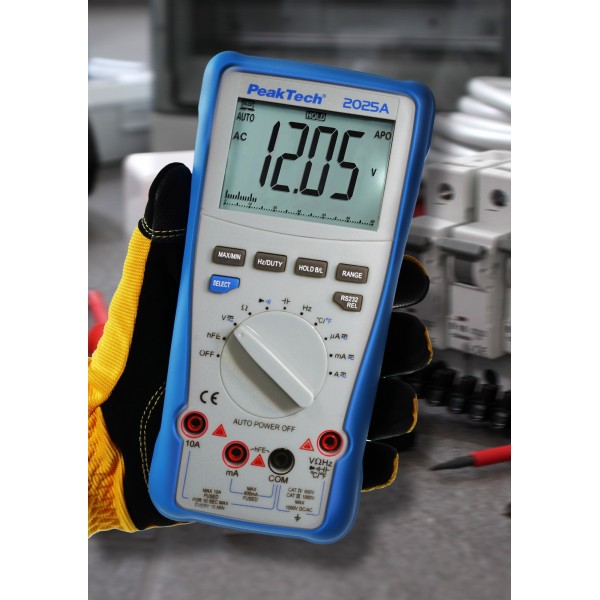

The new PeakTech 2025A offers a multitude of measuring functions for electrical quantities for every user from industry, trade, training, hobby and the laboratory.
Particularly noteworthy is the integrated data interface, which enables this model to record long-term data in combination with the PC software.
It was manufactured according to the latest development aspects and has a double-insulated injection-molded housing with rubber coating, a service flap on the back, through which not only the battery, but also the high-quality fuses can be replaced. The device runs on a battery and has an LCD screen with a character height of 27 mm and a bar graph with 61 segments. The automatic range selection offers a very user-friendly operation and measured values can be easily read on the illuminated display.
The PeakTech 2025 A can be used to measure DCV, ACV, DCA, ACA, resistance, capacity, diode, transistor, continuity, temperature and frequency, thus creating a wide range of applications. Due to the high overvoltage category CAT III up to 1000V, you can use this device safely on electrical installations and systems.
- 27mm, 3 5/6-digit LCD display (max. 5999) with backlight and 61 segment bargraph
- 3 readings per second
- True RMS measurement
- Automatic and manual range selection
- Temperature measurement using type-K probe
- Continuity test and diode test
- Data hold and Hz/Duty function
- Min/Max value mode
- Relative value function
- Auto power off and low battery indication
- Data transfer via USB connection
- hFE Transistor test
- Safety: EN 61010-1; CAT III 1000V
- Accessories: carrying case, test leads, hFE and thermocouple adapter, K thermocouple probe (-20°C ... 250°C), battery, USB cable, software, manual
DC V | 600mV / 6 / 60 / 600 / 1000V; 100µV; ± (0.5% + 3 digits) |
AC V | 6 / 60 / 600 / 1000V; 1mV; ± (0.8% + 5 digits) Frequency range: 40 to 400Hz |
DC A | 600µA / 6 / 60 / 600mA / 6 / 10A; 0.1µA; ± (0.8% + 10 digits) |
AC A | 600µA / 6 / 60 / 600mA / 6 / 10A; 0.1µA; ± (1% + 5 digits) Frequency range: 40 to 200Hz |
Resistance | 600Ω / 6 / 60 / 600kΩ / 6 / 60MΩ; 0.1Ω; ± (0.8% + 5 digits) |
Capacity | 60 / 600nF / 6 / 60 / 600µF; 10pF; ± (3.5% + 20 digits) |
Freqency | 10 / 100Hz / 1 / 10 / 100kHz / 1 / 20MHz; 1mHz; ± (0.5% + 4 digits) |
Temperature | -20 to +1000°C; 0.1°C; ± (1% + 50 digits) |
Diode Test | 2V; 1mV; ± 5%; Test currente 0.4mA |
hFE Transistor Test | 0 - 1000; NPN or PNP; Test current 10µA; VCE 1.5V |
Continuity Check | Threshold < 50Ω ±20Ω; Test current 0.4mA; < 1V; Overload protection 250V DC/AC rms |
Operating Voltage | 9V battery |
Dimensions (WxHxD) | 101x201x68mm3 |
Weight | 483g |
