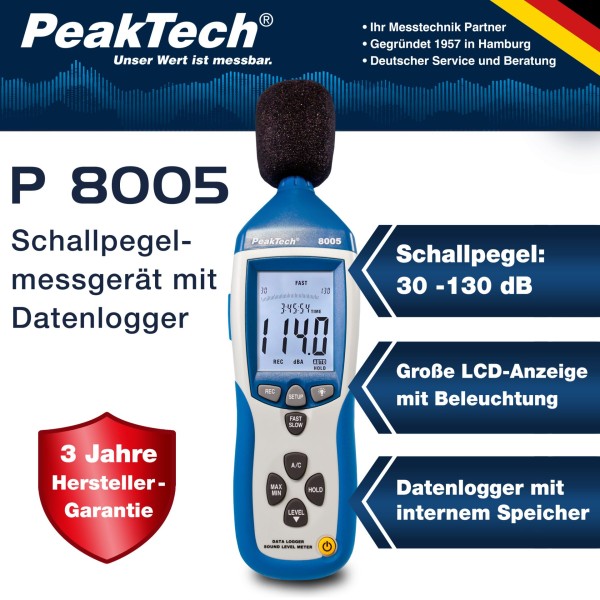

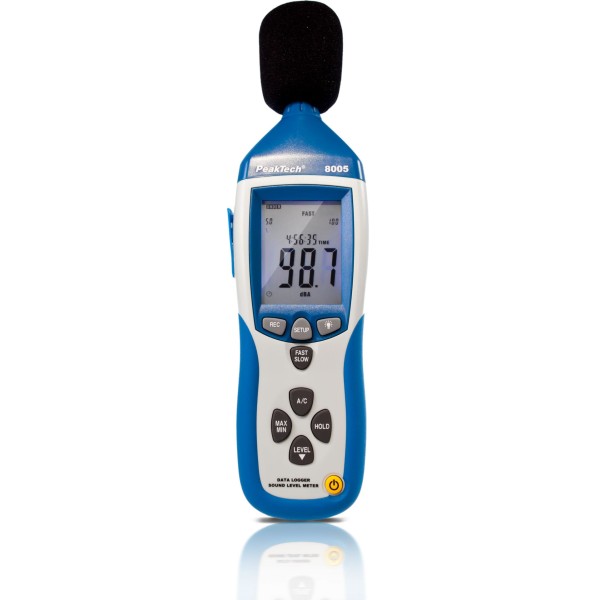

PeakTech 8005 - Sonómetro Digital de 4 dígitos con Datalogger y Interfaz USB

8005
214,87 $

Sonómetro Digital de 4 dígitos con Datalogger y Interfaz USB

Medidor digital de nivel de sonido (Sonómetro) con gran pantalla LCD retroiluminada multifunción (58 x 44 mm 2) con 4 dígitos de 20 mm y barra gráfica analógica adecuada para el control de la contaminación acústica, aislamiento acústico, en fábricas, escuelas, oficinas, calles y hogares.
Su interfaz USB permite la adquisición de datos durante mediciones a largo plazo, posibles gracias a la fuente de alimentación y los trípodes.

Disponible
Protocolo de seguridad HTTPS
Envío rápido en todo el mundo
A su servicio los 365 días del año

Professional Sound Level Meter 4 digits with Datalogger and USB interface

This Digital Sound Level Meter with 4 digits 20 mm LCD multifunction display (58 x 44 mm) bargraph, Datalogger and backlight is designed for noise projects quality control, illness prevention and cure, all kinds of environmental sounds measurement, applied to the sound measurement at factory, school, office, traffic access and household, etc.
Furthermore the PeakTech 8005 provides an USB interface in order to start duration-measurements over a long time.
The AC-adaptor power supply and the tripod guarantee for stable measuring values.
The unit can be selected for fast and slow response times and A and C-weighting.

  • With USB interface and datalogger with internal memory for up to 32000 values
  • Confirm the IEC-61672-1 class 2 for Sound Level Meters
  • MIN and MAX measurements
  • Over and under range display

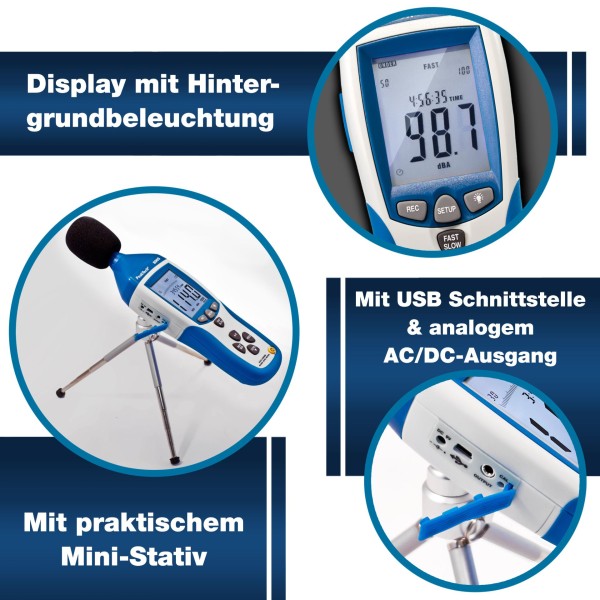

  • Analog AC / DC outputs for connection to frequency analyzer or X-Y shaft recorder

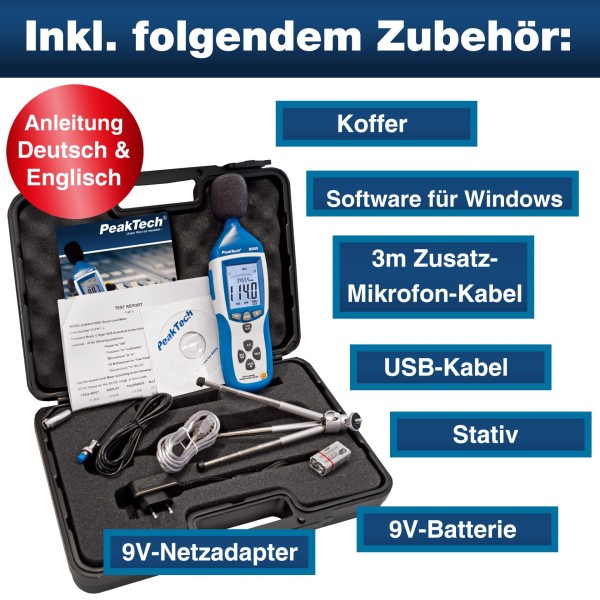

  • Accessories: case, USB interface cable, software for Windows 95/98/NT/2000/XP and VISTA, tripod, 9V AC adapter, 9V battery, manual
Standard applied IEC-61672-1 Typ 2, ANSI S1.4 Typ 2
Accuracy ± 1.4 dB
Frequency range 31.5 Hz - 8 kHz
Dynamic range 50 dB
Level ranges



low: 30 dB ~ 80 dB
med: 50 dB ~ 100 dB
high: 80 dB ~ 130 dB
auto: 30 dB ~ 130 dB
Time weighting fast: 125 ms / slow: 1 s
Microphone ½-inch electret condenser microphone
Resolution 0.1 dB
Display update 2 x times / sec.
Analog output AC / DC outputs, AC: 1 Vrms; DC: 10 mV/dB
Operation voltage 9 V-battery or 9 V AC adaptor
Dimensions (WxHxD)   80 x 280 x 50 mm3
Weight 350 g

Descargar

Manual 8005 DE-EN

PeakTech_8005_09_2021_DE-EN.pdf

Descargar (2.04M)

Manual 8005 ES

PeakTech_8005_06-2023_ES.pdf

Descargar (1.55M)

Manuel 8005 FR

PeakTech_8005_06_2020_FR.pdf

Descargar (1.46M)

Manuale 8005 IT

PeakTech_8005_02_2023_IT.pdf

Descargar (1.64M)

Podręcznik 8005 PL

PeakTech_8005_06_2023_PL.pdf

Descargar (1.73M)
