PeakTech 6225A - Fuente de Alimentación Conmutada de Laboratorio, CC 0-30V 0-5A, Instrumentos Digitales
6225A
86,37 $
Fuente de Alimentación Conmutada de Laboratorio, CC 0-30V 0-5A, Instrumentos Digitales
Fuente de alimentación conmutada con pantalla LCD retroiluminada, también visible en la oscuridad, la luz y con un tamaño modesto.

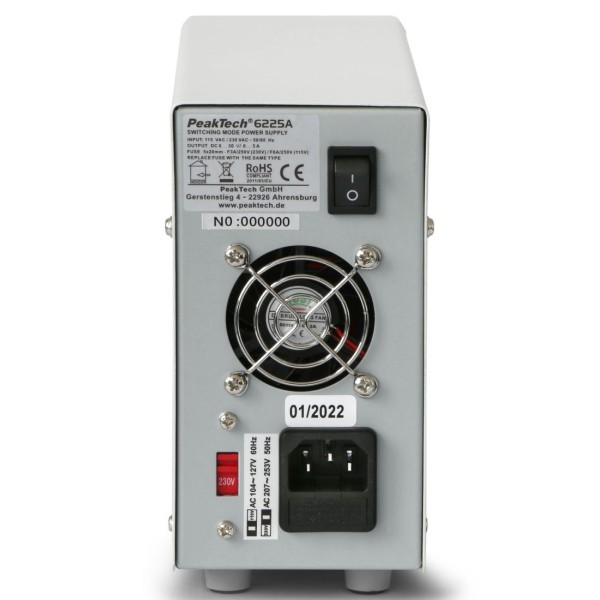

Laboratory Switching Power Supply, DC 0-30V 0-5A, Digital Meters
This switching mode power supply, due to its very handy shape and low weight, is ideal for applications in the development and education area.
The highly visibile display, the easy operation and low weight, as well as the slim design are excellent conditions for use in education and service area.
- Adjustable voltage range: 0 ~ 30 V
- Adjustable current range: 0 ~ 5 A
- Blue LED display to show the output voltage and current values
- High effiency > 85%
- Low ripple & noise
- Protection against short circuit, overload and over-temperature
- Safety: EN-61010-1
- Accessories: power cable, manual
Output voltage range | 0 - 30 V |
Output current range | 0 - 5 A |
Ripple & noise | ≤ 3 mV RMS; ≤ 3 mA RMS |
Load regulation | ≤ 0.01% +5 mV |
Line regulation | ≤ 0.01% + 1 mV |
Display accuracy | ±(0.1% + 2 digits) |
Protection | Overload, overtemperature, short circuit, overvoltage |
Operating voltage | 115/240 V AC; 50/60 Hz |
Dimensions (WxHxD) | 80 x 160 x 260 mm3 |
Weight | 1.5 kg |
