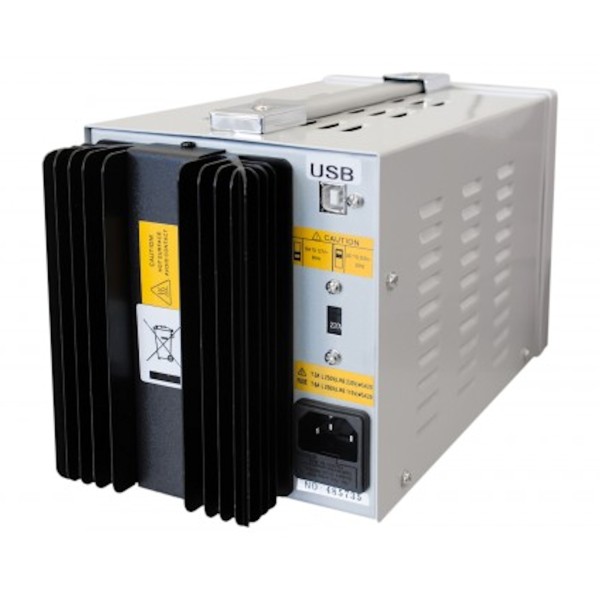

PeakTech 6070 - Fuente de Alimentación de Laboratorio, DC 0-30V 0-5A, Instrumentos Digitales

6070
188,32 $

Fuente de alimentación de laboratorio, CC 0-30V 0-5A, instrumentos digitales, con control remoto USB

El nuevo PeakTech 6070 es una Fuente de Alimentación de Laboratorio Lineal con Configuración Digital del Voltaje y la Corriente de Salida, tanto por teclado como incrementalmente en pasos de 0.1 V / 0.1 A o 1 V / 1 A.
También está equipado con un bloqueo de teclado, útil para evitar cambios no autorizados en los valores de salida.
El voltaje y la corriente de salida se muestran con precisión en la gran pantalla digital, con resolución de 1 mA y 10 mV.
El aislamiento galvánico entre la red eléctrica y la salida es particularmente efectivo.

Disponible
Protocolo de seguridad HTTPS
Envío rápido en todo el mundo
A su servicio los 365 días del año

PeakTech 6070 - Laboratory Power Supply, DC 0-30V 0-5A, Digital Meters, With USB Remote Control

The new PeakTech 6070 is a linear-controlled laboratory power supply with a full digital adjustment of the output settings. All output values of current and voltage can either be set directly by pressing the numpad or increased and decreased in 0.1V / 0.1A or 1V / 1A steps. Through this you can avoid tedious adjustment of the desired value via rotary control. In addition, this function also enables the integrated key-lock, which can be used to secure the device against unauthorized alteration of the output values.

All output values can be read accurately on the large digital display, which is resolved with 1mA and 10mV over the entire range.

The used  transformer ensures a safe galvanic isolation between the primary (input) side and the secondary (output) side of this lab power supply.

Due to the many positive features, such as the easy-control, safe technology and the precise display, this lab power supply is suitable for many applications in the laboratory, workshops and industry.

  • 4-digits 25 mm LED-display for voltage and current
  • Current and voltage setting in idle mode
  • Output switchable
  • USB for remote control
  • Software for timed programs
  • Passive cooling
  • Overload protection and short circuit
  • 4 mm safety jacks
  • Safety: EN-61010-1
  • Safety-Transformer: EN 61558 - 2 - 6
  • Accessories: power cable, software CD, USB cable, manual
Output voltage 0 - 30 V DC
Output current 0 - 5 A
Output power 150 W
Line regulation CV ≤ 0.01% + 1mV (0-100% load)
CC ≤ 0.02% + 1mA (0-100% load)
Load regulation CV ≤ 0.01% + 3mV (0-100% load)
CC ≤ 0.02% + 3mA (0-100% load)
Ripple & Noise CV ≤ 0.5mV rms (100% load)
CC ≤ 1mA rms (100% load)
Protection Constant current and short circuit protection
Voltage indication accuracy   ±0.5% + 5 digits
Current indication accuracy ±1.0% + 5 digits
Operating temperature 0°C ... +40°C; < 80% RH
Operating voltage 115 / 230 V AC; 50/60 Hz switch selectable
Dimension (WxHxD)   135 x 165 x 275 mm3
Weight 5.5 kg

Descargar

Manual

PeakTech_6070_12-2018F

Descargar (970.05k)
