PeakTech 6160 - Fuente de Alimentación Conmutada de Laboratorio, DC 1-30V 0-30A, Instrumentos Digitales
Fuente de Alimentación Conmutada de Laboratorio, DC 1-30V 0-30A, Instrumentos Digitales
Fuente de alimentación conmutada extraordinariamente resistente a las interferencias de radiofrecuencia.
La protección de corriente constante, la protección contra sobretensiones y la protección de sobretemperatura de corriente constante garantizan su alta fiabilidad y durabilidad.
Apto para sectores de telecomunicaciones, laboratorio e industria.

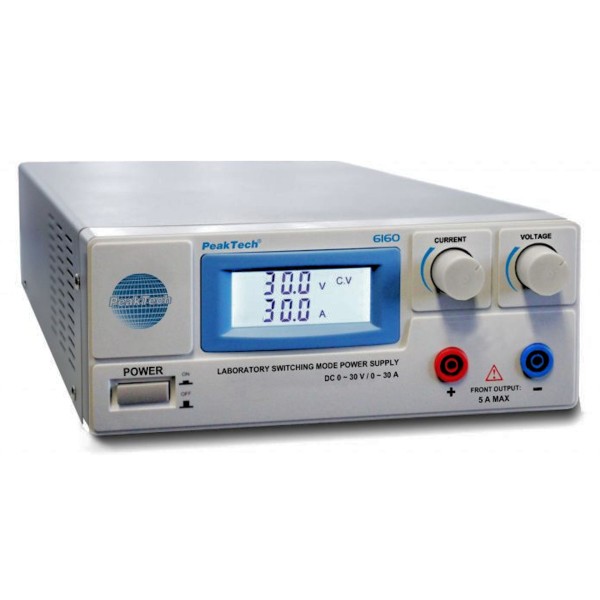

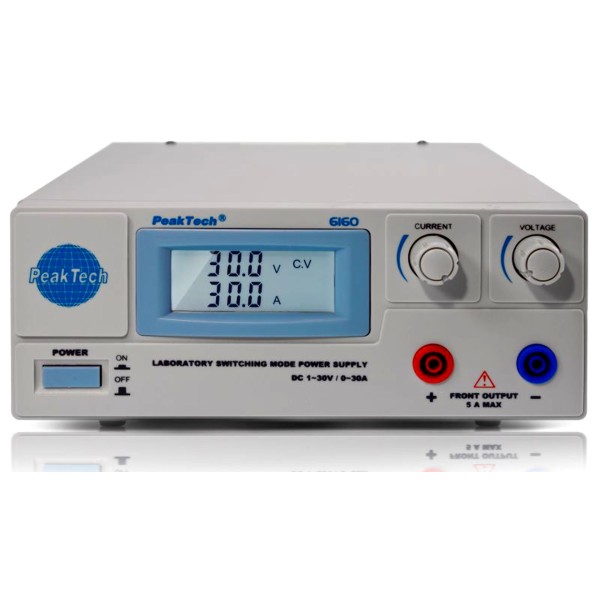

Laboratory Switching Power Supply, DC 1-30V 0-30A, Digital Meters
A newly developed switching mode power supply for a wide range of applications in the telecommunications, laboratory and industry. This power supply has an extraordinary resistance to RF interference from close range.
The constant-current protection, over voltage protection and protection against over-temperature at constant current ensure high reliability and durability of this power supply.
- High efficiency
- Short-circuit protected
- Adjustable voltage range: 1 ~ 30 V

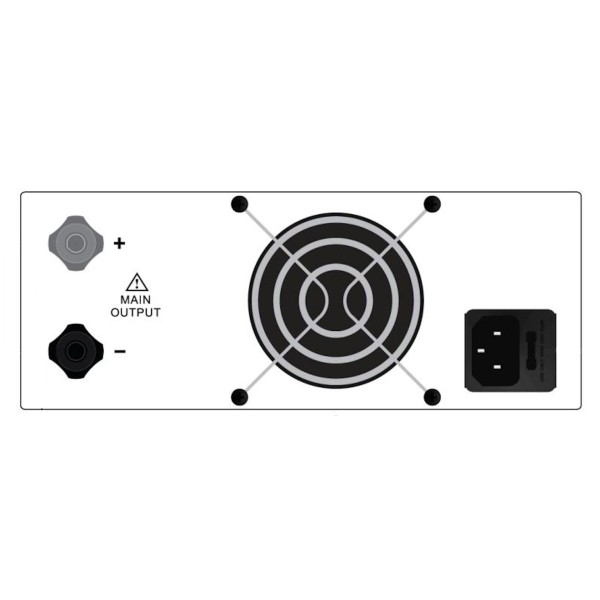

- DC output: binding posts at the back up to 30 A
- Safety: EN 61010-1
- Accessories: power cable, manual
Output voltage | 1 - 30 V DC |
Output current | 0 - 30 A / 0 - 5 A (rear panel main output / front output) |
Ripple and noise | 100 mVpp (0 - 100% load) |
Voltage and current display | LCD 3 digit ±(1% + 3 digits) |
Protection | Constant current and short circuit protection |
Operating voltage | 230 V AC; 50 Hz |
Dimension (WxHxD) | 214 x 87 x 336 mm3 |
Weight | 3 kg |
