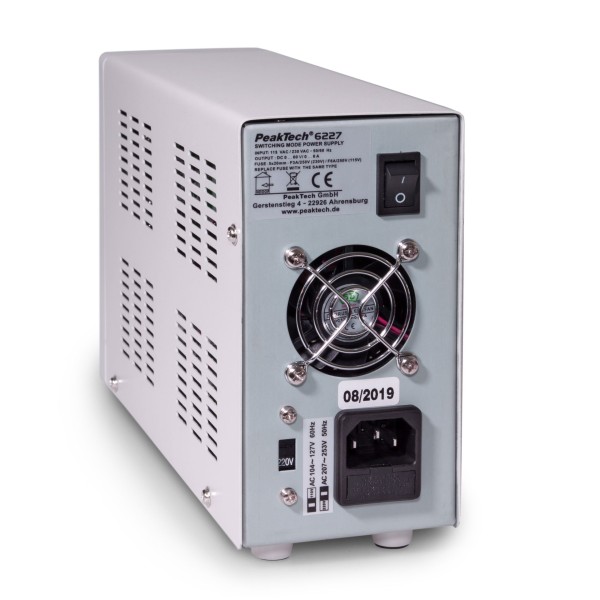

PeakTech 6227 - Fuente de Alimentación Conmutada de Laboratorio, CC 0-60 V 0-6 A, máx. 150 W, Pantalla LCD digital Multifunción

Referencia: 6227

124,80 $

Fuente de Alimentación Conmutada de Laboratorio, CC 0-60 V 0-6 A, máx. 150 W, Pantalla LCD digital Multifunción

Fuente de alimentación conmutada de laboratorio con tensión de salida regulable de 0 a 60 V DC y corriente de 0 a 6 A, con potencia continua máxima de 150 W.
La salida se puede activar o desactivar y los valores tensión y corriente se muestran en azul en la pantalla LCD.
Los ajustes de voltaje y corriente se pueden realizar incluso cuando la salida está apagada.
Esta fuente de alimentación también suministra voltaje, de acuerdo con el estándar USB, a dos puertos tipo A en el panel frontal.
Esta salida también se puede activar o desactivar y los valores de voltaje y corriente se muestran en verde en la pantalla LCD.

Disponible

Protocolo de seguridad HTTPS

Envío rápido en todo el mundo

A su servicio los 365 días del año

Descripción
Archivos adjuntos

Laboratory Switching Power Supply, DC 0-60V 0-6A, max 150W, Multifunction Digital LCD Display

Laboratory switching power supply with adjustable output voltage from 0 to 60 V DC and current from 0 to 6 A, with maximum continuous power of 150 W. The maximum current that can be set is automatically limited so as not to exceed the maximum power of 150 W.
The output can be turned on or off and the voltage and current values are displayed in blue on the LCD display.
The voltage and current settings can be made even when the output is turned off.
They are performed with a knob with digital encoder and by pressing on it you pass from coarse to fine resolution, respectively in steps of 1 V or 10 mV and 100 mA or 1 mA.
This power supply also supplies voltage, according to the USB standard, to two type A ports on the front panel.
This output can also be activated or deactivated and the voltage and current values are displayed in green on the LCD display.

Blue LCD display which indicate voltage and current of the main output
Green LCD display which indicate voltage and current of the USB output
Constant voltage mode
Constant current mode
Constant power mode (150W)
Adjustable voltage from 0 to 60 V
Current settable from 0 to 6 A (if not limited by the maximum power)
Pre-selection of voltage and current with disabled output
Short circuit, overload and overheating protection
Safety: EN-61010-1

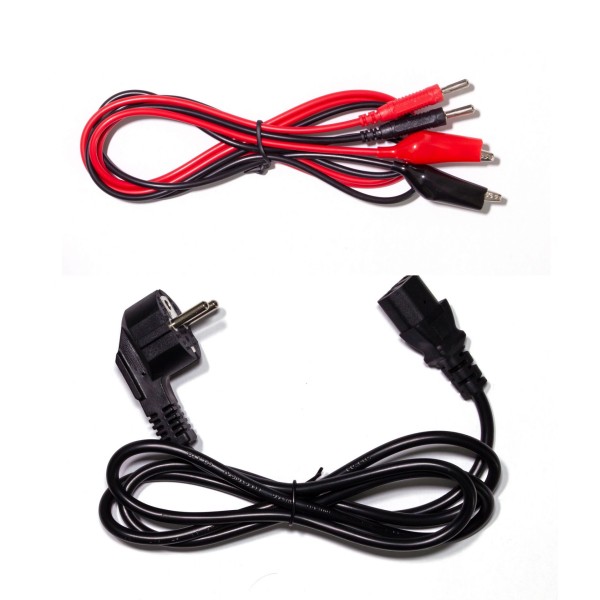

Accessories: power cable, output cables, manual

Output voltage	0 to 60 V
Output current	0 to 6 A
Output power	150 W maximum
Line regulation	≤ 0.1% ±3 mV; ≤ 0.2% ±3 mA
Load regulation	≤ 0.01% ±5 mV; ≤ 0.5% ±5 mA
Ripple & noise	≤ 5 mV rms; ≤ 20 mA rms
Display accuracy	±(0.5% + 5 digit)
Voltage resolution	10 mV
Current resolution	1 mA
Protections	overload, overheating, short circuit
Supply voltage	115/230 V AC externally switchable; 50/60 Hz
Dimensions (WxHxD)	80 x 160 x 260 mm³
Weight	1.6 kg
