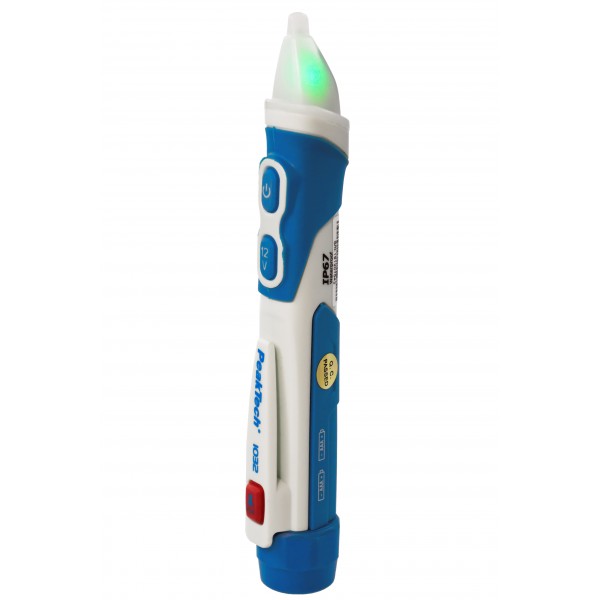

PeakTech 1032 - Detector de Voltaje de 12 a 1000 V CA con Vibración

1032
23,87 $

Detector de Voltaje de 12 a 1000 V CA con con Vibración

Fácil de usar para la detección sin contacto de tensiones alternas de 12V a 1000V.
Locate el polo bajo tensión en las tomas eléctricas o a través del aislador de los conductores.
Adecuado para seguir conductores en cables bajo carril y para localización de saltos de línea.
Parpadea en rojo y emite un pitido si hay voltaje. Parpadea en verde si no hay voltaje.

Disponible
Protocolo de seguridad HTTPS
Envío rápido en todo el mundo
A su servicio los 365 días del año

Voltage Detector 12 - 1000 V AC Contactless with Buzzer, Vibration and LED Flashlight

Voltage Detector for the contactless detection of AC voltages on live cables and devices. By switching the measuring range, it is possible to detect even low voltages down to a minimum of 12V AC.
When the display shows "Working" you can be sure that the detector is working and detects if there is voltage.
If AC voltage is present at the measuring point, this is indicated by the flashing of the yellow or red LED, by the sound of the buzzer and the vibration of the detector.
In this way the voltage detection cannot escape even in noisy environments.
The integrated LED flashlight can be switched on at any time, even if the voltage detector is switched off.
In addition, the device can be carried comfortably and safely with its pocket clip.
The ergonomic and modern design, as well as the many practical features and the high user safety with overvoltage category IV 1000 V complete the profile of the PeakTech 1031 voltage tester.

  • Two sensitivities: high (12 - 1.000V); reduced (100 - 1.000V)
  • In high sensitivity mode a yellow LED signals the presence of voltage, with distance-dependent flashing frequency.
  • In reduced sensitivity mode a red LED signals the presence of voltage, with distance-dependent flashing frequency.
  • The voltage detection is also signaled acoustically, as well as with the vibration of the detector.
  • Robust double mold case and practical format with pocket clip that fits snugly into any shirt pocket
  • All outer surfaces are made of non-conductive material
  • Integrated flashlight with its own on / off switch
  • Security: EN 61010-1; CAT IV 1000 V
  • Accessories: two batteries, instruction manual
Operating range 12 ~ 1000 / 100 ~ 1,000 V AC; 50/60 Hz
Operating temperature   From 0°C to 50°C (32°F to 122°F)
Operation voltage 2 x 1,5 V AAA (UM-4) batteries
Dimensions 155 x 25 x 17 mm3
Weight 30 g including batteries

Descargar

Manual 1032 DE-EN

PeakTech_1032_02-2021.pdf

Descargar (783.27k)
