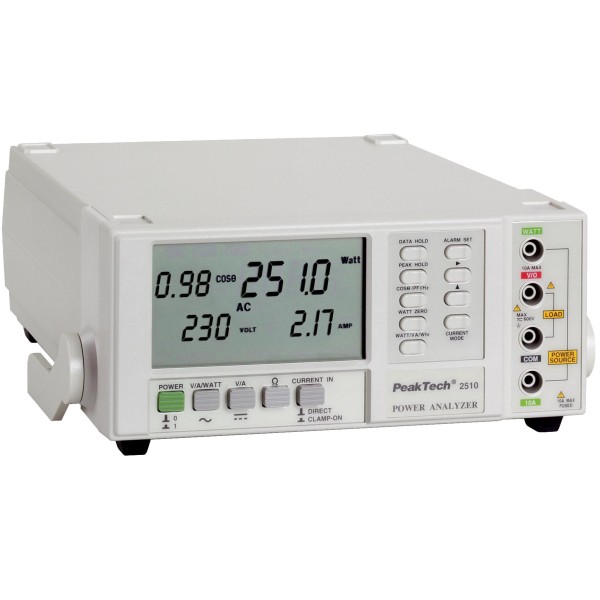

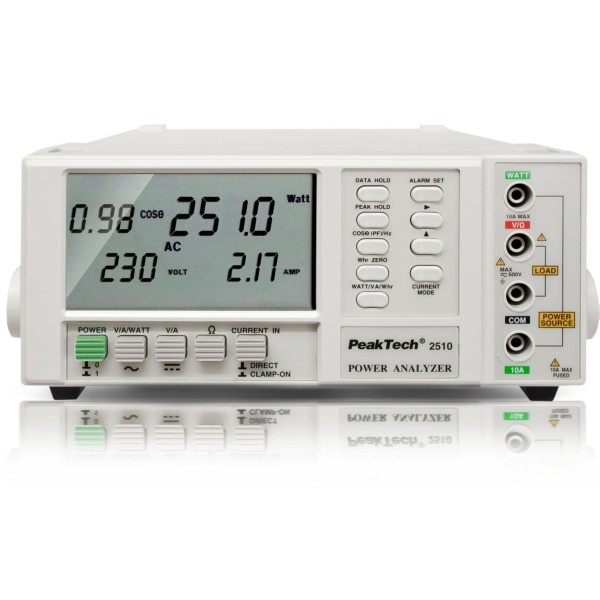

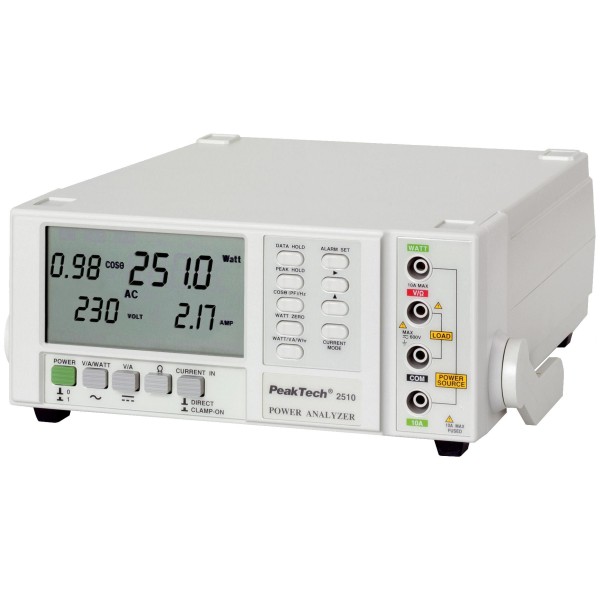

PeakTech 2510 - Medidor de Consumo Multifunción de Red Eléctrica con Interfaz RS-232C

2510
375,44 $

Medidor de Consumo Multifunción de Red Eléctrica con Interfaz RS-232C

Analizador multifunción para medir la potencia, el factor de potencia, el voltaje, la corriente, la frecuencia y la resistencia.
Pantalla LCD muy grande de 93 x 52 mm2, que permite una fácil lectura contemporáneo de potencia, factor de potencia, voltaje y corriente.

Disponible
Protocolo de seguridad HTTPS
Envío rápido en todo el mundo
A su servicio los 365 días del año

Multifunction Power Analyzer with RS-232C interface

Multifunction power analyzer for testing of Watt, Power factor, AC V, AC A, DC A Hz and Ohm.
Super large LCD 93 x 52 mm2, easy to read out the power, power factor, voltage and current values at the same time.

  • Current mode from direct input, inductive clamp probe or CT (Currente Transformer)
  • Auto range
  • Built-in peak hold and data hold function
  • Alarm Hi, Low setting capability
  • Power supply by DC battery or AC to DC adapter
  • Safety: EN 61010-1; CAT II 600 V
  • Accessories: test leads, RS-232C interface cable, software for Windows 95 / 98 / ME / 2000 / NT / XP, batteries. manual
Power (AC true power) - current from direct input
Range 6000 W; 1 W ± (1.5 % + 5 digits)

Power (AC true power) - current from inductive probe or CT
Range 9.999 kW; 1 W
99.99 kW; 10 W
999.9 kW; 100 W

VA (AC, apparent power) - current mode from direct input
Range 99.99 VA; 0.01 VA ± (2 % + 2 digits)
999.9 VA; 0.1 VA ± (2 % + 2 digits)
9999 VA; 1 VA ± (2 % + 2 digits)

Power Factor - current mode from direct input only
Range 1.00; 0.01 ± (1.5 % + 2 digits)

AC Voltage (true rms), DC Voltage
Range 299.9 V; 0.1 V ± (1 % + 5 digits)
600 V; 1 V ± (1 % + 5 digits)

AC Current (true rms), DC Current - current mode from direct input
Range 10.00 A; 10 mA ± (1 % + 3 digits)

AC Current (true rms) - current mode from inductive probe
Range 1000 A; 1 A

AC Current (true rms) - current mode from CT
Range CT 100 / 5 A, 200.0 A; 0.1 A
CT 1000 / 5 A 1 - 2000 A; 1 A

Watt Hour - current from direct input
Range 9.999 Whr; 0.001 Whr ± (1.5 % + 5 digits)
99.99 Whr; 0.01 Whr ± (1.5 % + 5 digits)
999.9 Whr; 0.1 Whr ± (1.5 % + 5 digits)
9999 Whr; 1 Whr ± (1.5 % + 5 digits)
99.99 kWhr; 10 Whr ± (1.5 % + 5 digits)
999.9 Whr; 100 Whr ± (1.5 % + 5 digits)
9999 Whr; 1 kWhr ± (1.5 % + 5 digits)

Ohms
Range 9999 Ohm; 1 Ohm ± 1 % + 1 digit)
19.99 kOhm; 10 Ohm ± (1 % + 1 digit)

Frequency
Range 99.9 Hz; 0.1 Hz ± (1 % + 1 digit)
999 Hz; 1 Hz ± (1 % + 1 digit)
Operating Voltage 9 V DC 30 mA - 6 x 1.5 V Batteries (UM3, AA)
Dimensions (WxHxD)   280 x 210 x 90 mm3
Weight 1.1 kg

Descargar

Manual

PeakTech_2510_01_2016.pdf

Descargar (652.97k)
