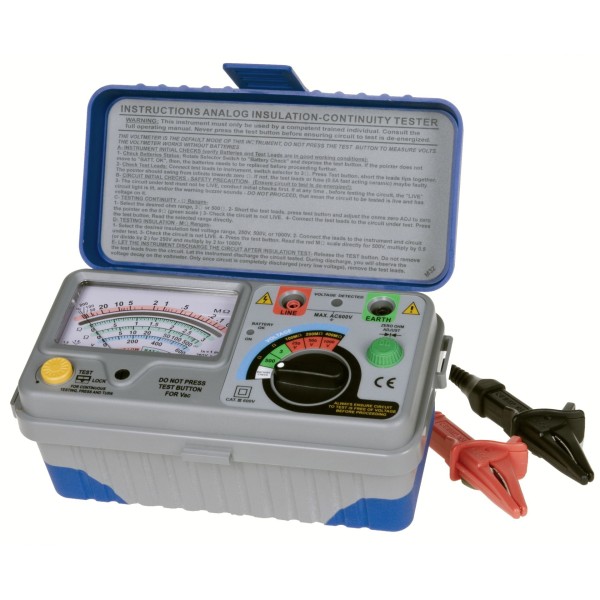

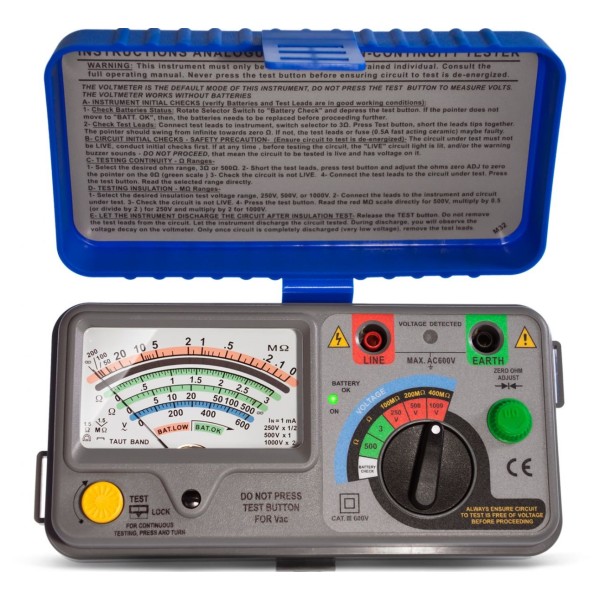

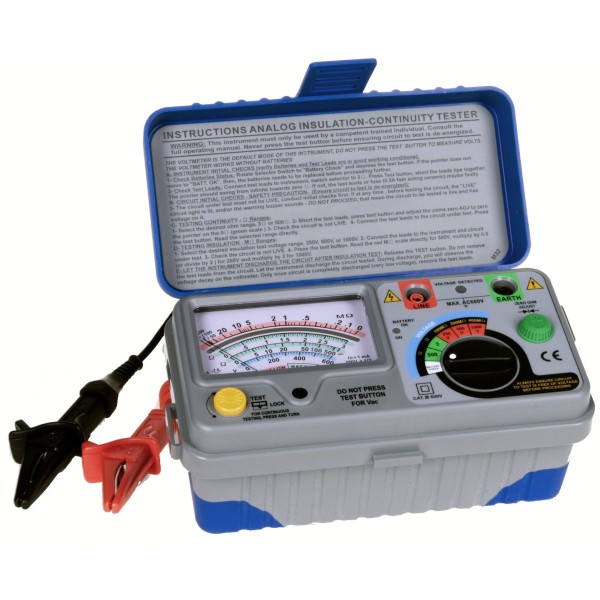

PeakTech 2675 - Medidor Analógico de Aislamiento de Bobina Móvil @ 250/500/1000 VDC, 400 MΩ

2675
229,10 $

Medidor Analógico de Aislamiento de Bobina Móvil @ 250/500/1000 VDC, 400 MΩ

Realiza mediciones de resistencia de aislamiento a la tensión seleccionada, mediciones de voltaje CA, resistencia y continuidad.

Disponible
Protocolo de seguridad HTTPS
Envío rápido en todo el mundo
A su servicio los 365 días del año

Moving Coil Meter Analogue Insulation Tester @ 250/500/1000 V DC

Every electrical apparatus and installation need to be safe for the user and for the equipment itself.
Electrical conductors of electricity need to be insulated from each other, so that they do not create electrical hazard.
Badly insulated circuits can create leakage current which can be dangerous and trip your GFCI, RCCB or ELCB.
Each country regulates those levels at which the insulation is acceptable.
Check the continuity of wires, complete circuits connections, closure of contacts, circuit breakers, fuses, bounding resistance of connections, etc. are all very important.

  • Moving Coil Meter
  • Three insulation tests: 100 MΩ / 250 V; 200 MΩ / 500 V; 400 MΩ / 1000 V
  • Voltmeter up to 600 V AC
  • 205 mA continuity short circuit current in continuity-measuring function 3 Ω / 500 Ω
  • Automatic discharge of capacitance and inductive circuit
  • Live warning and display of external voltage presence
  • Battery check
  • Continuity test
  • Overload protection and battery monitoring
  • Safety: EN 61010-1: CAT III 600 V
  • Accessories: Test leads, alligator clips, carrying belt, batteries, manual
Insulation range / test voltage


100 MΩ / 250 V
200 MΩ / 500 V
400 MΩ / 1000 V

Short circuit current

1.3 mA

AC V

600 V; 3 %

Ohm



3 Ω
500 Ω

Operation voltage

8 x 1.5 V AA (UM-3)
Dimensions (WxHxD)  85 x 175 x 75 mm3
Weight 650 g

Descargar

Manual

PeakTech_2675_12_2015.pdf

Descargar (574.25k)
