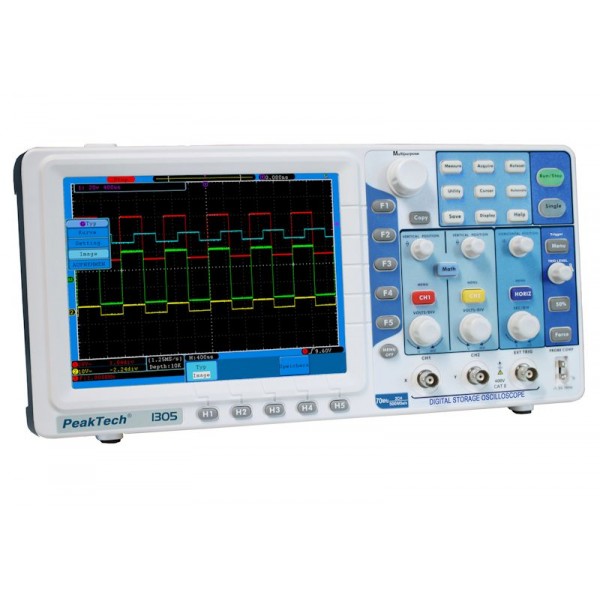

PeakTech 1305 - Oscilloscope Numérique 8 bits, 8", 2 Canaux 70 MHz 1 GS/s total

1305
623,49 $US

Oscilloscope Numérique 8 bits, 8", 2 Canaux 70 MHz 1 GS/s total

Oscilloscope numérique de dernière génération avec écran couleur rétroéclairé haute résolution, large bande et fréquence d'échantillonnage élevée, sortie VGA, mémoire interne importante, port USB et connectivité LAN pour l'intégration réseau.
Le rapport qualité-prix incroyable et la technologie moderne permettent un large éventail d'applications dans le domaine de l'éducation, de la maintenance et du contrôle qualité.

En stock
Protocole HTTPS de sécurité
Expédition rapide dans le monde entier
A votre service 365 jours par an

Digital Oscilloscope 8 bits, 8", 2 Channels 70 MHz 1 GS/s total

Digital storage oscilloscope of the latest generation with high-resolution color display, backlight, high bandwith and high sampling rate, VGA-output, large internal memory, USB port and LAN connection for integration into networks.
The amazing value for money and modern technology allow a wide range of applications in education, service and quality assurance area.

  • 8" (20 cm) high-resolution TFT color display with 800 x 600 pixels and 65536 colors
  • USB port for real-time data transmission or reading of internal memory
  • Saving of measured values and graphics to external USB memory device
  • VGA-output port for external monitor
  • LAN connection for remote acces via network
  • Autoset and autoscale function for easy operation
  • Internal memory of 100,000 points per channel or 15 waveforms
  • 20 automatic measurement modes and FFT function
  • PASS/FAIL function
  • safety: EN 61010-1; CAT II
  • Accessories: 2 pcs. BNC cable, USB cable, software CD for Windows 2000/XP/VISTA/7, power cable, 2 probes, carrying case and manual
  • Optional accessories: accu pack 7,4 V, 8 Ah, model AKKU 3
Bandwidth 70 MHz
Display 8" (20 cm) TFT with 65536 colors, 800 x 600 Pixels
Channels 2 Ch
Measurement acquisition
Sampling mode normal, peak detect, average
Sampling rate each Channel 500 MSa/s
Input
Input coupling AC, DC, GND
Input impedance 1 MΩ ± 2 % in parallel with 15 pF ± 5 pF
Max. input voltage 400 V DC or AC pp
Vertical system
Sensitivity 5 mV - 5 V/Skt/div.
Rise time < 5 ns
DC accuracy ±3 %
Vertical resolutions 8 Bits (2 CH simultaneously)
Horizontal system
Horizontal scale 5ns - 100S/div
Sampling range 0.5S/s - 1 GS/s
Trigger
Trigger type Edge / Video / Pulse / Slope
Trigger mode Auto, Normal, Single
Trigger coupling DC, AC, LF, HF
Measurements
20 Automatic measurements peak-peak, cycle RMS, Vmax, Vmin, Vtop, Vbase, Vamp, overshoot, preshoot, rise time, fall time, +width, -width, +duty, -duty, delay A→B (rising), delay A→B(falling), frequency, period, min, max
Phase difference ± 3°
Record
Record length 100,000 points/CH
Common specifications
Interfaces USB, VGA, LAN
Operating voltage 100 ~ 240 V AC 50 ~ 60 Hz
Dimensions (WxHxD)   355 x 178 x 118 mm3
Weight 1.6 kg

Téléchargement

Manual

PeakTech_1265_1305_1310_10_2015.pdf

Téléchargement (5.46M)
