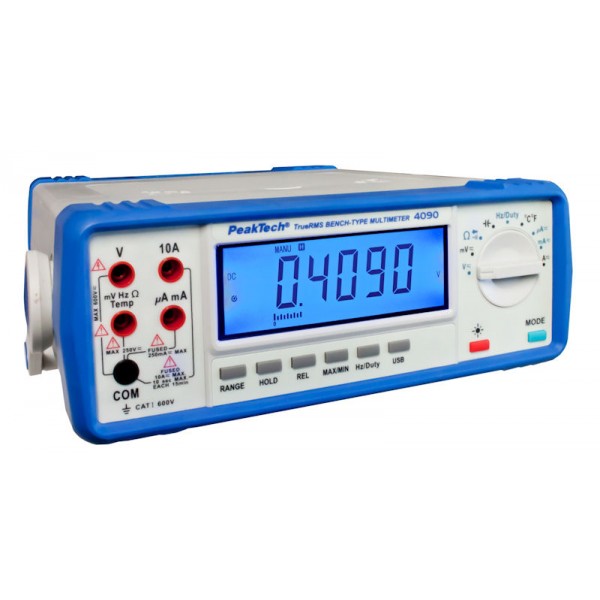

PeakTech 4090 - Digital Bench Multimeter, 4 ½ digits 21mm, TRMS, Frequency Meter, USB

4090
$311.86

Digital Bench Multimeter, 4 ½ digits 21mm, TRMS, Frequency Meter, USB

This high-precision digital bench type multimeter offers highly accurate measurements and has a large 4 ½ digit LCD display with backlight.
It can be used both in the laboratory in network operation, and in the mobile service in battery mode.
In this way, the device offers a variety of applications.
The useful additional features such as True RMS measurement (True RMS), relative value measurement, MIN/MAX and DATA hold function round off the versatility of this device.
With the optical USB interface and computer software the unit can display, draw record all test processes on a computer, the graphic software has an exclusive dynamic scale, which can describe very small changes of electric parameters.

Available
Security HTTPS protocol
Fast shipment worldwide
At your service 365 days a year

Digital Bench Multimeter, 4 ½ digits 21mm, TRMS, Frequency Meter, USB

This high-precision digital bench type multimeter offers highly accurate measurements and has a large 4 ½ digit LCD display with backlight.
It can be used both in the laboratory in network operation, and in the mobile service in battery mode.
In this way, the device offers a variety of applications.
The useful additional features such as True RMS measurement (True RMS), relative value measurement, MIN/MAX and DATA hold function round off the versatility of this device.
With the optical USB interface and computer software the unit can display, draw record all test processes on a computer, the graphic software has an exclusive dynamic scale, which can describe very small changes of electric parameters.
In connection with a computer the bench type multimeter becomes a very useful measurement recorder.

  • 4 ½ digit, 21mm LCD display with backlight (max. 22000 counts)
  • True RMS measurement
  • Automatic and manual range selection
  • Relative functions
  • DATA, MIN/MAX HOLD
  • Diode, continuity test
  • USB interface
  • Safety: EN-61010-1; CAT I 600V
  • Included accessories: case, power cord, USB interface cable, software for windows XP/VISTA/7/8, test leads, operating manual
DC V 220mV / 2.2 / 22 / 220 / 600V; 10µV; ± (0.05% + 6 digits)
AC V 220mV / 2.2 / 22 / 220 / 600V; 10µV; ± (0.5% + 30 digits) (40Hz - 30kHz)
DC A 220μA / 2.2 / 22 / 220mA / 10A; 0.01μA; ± (0.2% + 15 digits)
AC A 220μA / 2.2 / 22 / 220mA / 10A; 0.01μA; ± (0.8% + 30 digits)
Ohm 220Ω / 2.2 / 22 / 220kΩ / 2.2 / 22 / 220MΩ; 10mΩ; ± (0.1% + 10 digits)
Frequency 20Hz - 220MHz; 1mHz; ± (0.06% + 10 digits)
Capacity 22 / 220nF / 2.2 / 22 / 220µF / 2.2 / 22mF; 10pF; ± (2.0% + 5 digits)
Temperature -20 to +1000°C (type K); 0.1°C; ± (1.5% + 3°C)
Operating voltage 100-120V / 220-240V externally switchable; 50-60Hz / 6 x 1.5V AA Batteries
Dimension (WxHxD)   268x108x322mm3
Weight 2.8kg

Download

Manual

PeakTech_4090.pdf

Download (818.59k)
