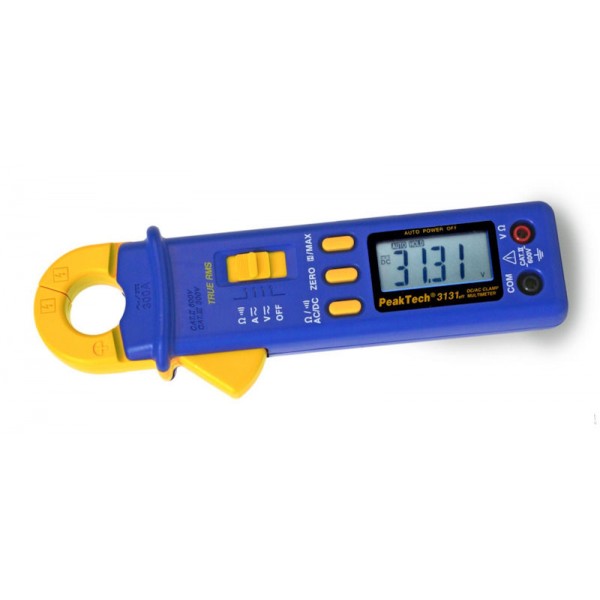

PeakTech 3131 eff - Clamp Meter DC/AC, 3 ¾ digits 13mm, 300A 22mm, True RMS, Auto Ranging

3131
$202.95

Clamp Meter DC/AC, 3 ¾ digits 13mm, 300A 22mm, True RMS, Auto Ranging

Available
Security HTTPS protocol
Fast shipment worldwide
At your service 365 days a year

Clamp Meter DC/AC, 3 ¾ digits 13mm, 300A 22mm, True RMS, Auto Ranging

  • 3 ¾ digits, 13mm LCD Display, max. indication: 3999
  • 10mA resolution
  • AC / DC Current Measurements up to 300A
  • True RMS measurements
  • Continuity beeper
  • Auto zeroing key for DC A
  • Data hold and max. hold function
  • Auto ranging
  • Auto power off selectable
  • Max. conductor size: 22mm
  • Safety: EN 61010-1; CAT II 600V
  • Accessories: Carrying case, test lead, batteries, manual
Functions
DC V 400mV / 4 / 40 / 400 / 600V; 0.1mV; ± (0.5% + 2 digits)
AC V 400mV / 4 / 40 / 400 / 600V; 0.1mV; ± (1.5% + 5 digits)
DC A 40 / 300A; 10 mA; ± (1% + 2 digits)
AC A 40 / 300A; 10 mA; ± (1% + 3 digits)
Ohm 400Ω / 4 / 40 / 400kΩ / 4 / 40MΩ; 0.1Ω; ± (0.9% + 2 digits)
Battery 2 x 1.5V AAA
Dimensions (WxHxD)   66x192x27mm3
Weight 205g

Download

Manual

PeakTech_3131eff.pdf

Download (606k)
